Compare Model Drawings, CAD & Specs Availability Price

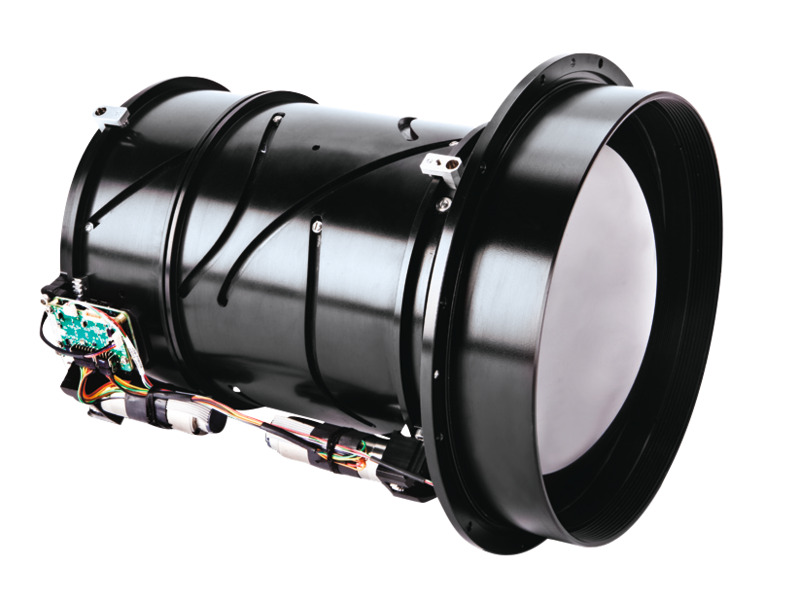

SupIR 40-300mm f/1.5
LWIR Motorized Continuous Zoom Lens, SupIR, 40-300 mm FL, f/1.5, High Durability, HD, Gen3

HFOV [deg]

WFOV (40 mm)

Pitch 320x240 640x480 1024x768 1280x1024
25 µm 12.2° 24.5°
17 µm 8.3° 16.6° 26.8°
12 µm 5.8° 11.7° 18.8° 23.5°

NFOV (300 mm)

Pitch 320x240 640x480 1024x768 1280x1024
25 µm 1.5° 3.0°
17 µm 1.0° 2.1° 3.3°
12 µm 0.7° 1.5° 2.3° 2.9°


  • Type
    Continuous Zoom
  • Focal Length
    40-300 mm
  • F/#
  • Spectral Range
    8-12 μm
  • Back Focal Length
    56 mm in air
  • HD Format
  • Minimum Focus Range
    2 m Wide, 10 m Narrow
  • Nuc (by defocus)
  • Focus Mechanism
  • Focus Time
    ≤1 sec
  • Zoom Mechanism
  • Zoom Time
    ≤9 sec at -32°C
    ≤6 sec at T ≥0°C
  • Weight
    9.5 kg
  • Dimensions
    Ø204 mm x 299.5 mm
  • Operating Temperature Range
    -32°C to +75°C
  • Storage Temperature Range
    -54°C to +85°C
  • Sealing
    IP 67 front element only
  • Drive Voltage
    12 VDC
  • Current Consumption
    0.8 A average, 1.5 A peak
  • Communication Interface
  • Wavelength Region

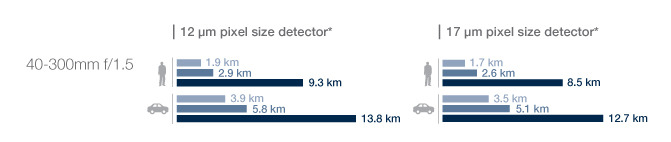

SupIR 40-300mm f/1.5 Detection, Recognition & Identification (DRI) Range

DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!

The calculations used here are based on the “Johnson Criteria”. According to the Johnson Criteria, the minimum resolution, pixels on target, required to achieve a 50% probability for an observer to discriminate an object are:

  • Detection: An object is present – 2 pixels on target (Lower Bar)
  • Recognition: discern the type of object, a human vs. a vehicle – 8 pixels on target (Middle Bar)
  • Identification: discern specific objects, a man vs. a woman, a car model – 12.8 pixels on target (Upper Bar)

SupIR 25-225mm f/1.5 vs. SupIR 40-300mm f/1.5 Demo

How far can you see? with Ophir's long range zoom lenses the theoretical distance becomes practical. Check out the high performance long range zoom lenses comparison: 25-225mm 17µ and 40-300mm 12µ. Thermal video data collected by Sierra-Olympic Technologies inc.

High Performance Long Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

  • Physical Vapor Deposition (PVD) – Thermal heating and electron gun
  • Ion Assisted Deposition (IAD) – Ion gun
  • Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
