Compare Model Drawings, CAD & Specs Availability Price
7Z01700

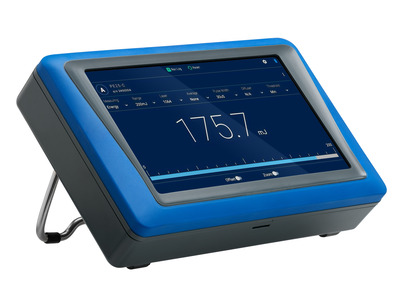

Centauri Single Channel
Centauri Laser Power & Energy Meter, 1 Channel, 7 in. Color Touchscreen
$2,046
7Z01701
Centauri Dual Channel
Centauri Laser Power & Energy Meter, 2 Channel, 7 in. Color Touchscreen
$2,544

PC Software & Drivers

This section describes various ways to interface the Ophir meter to your PC as well as the software options available. Check out the datasheet for more details.


StarLab

The StarLab application together with an Ophir meter turns your PC or laptop into a full-fledged laser power/energy meter. Supports most Ophir laser power/energy sensors. Up to 8 sensors can be displayed at once on one PC. By using the Ophir COM Object, you can control the device from your own application. Supports the Ariel, Centauri, StarBright, StarLite, Juno, Juno+, Juno-RS, Nova II, Vega, Pulsar-1/2/4, Quasar, EA-1 and IPM sensor devices.


LabVIEW

Library supplied for a complete measurement interface with most of our USB speaking devices (Centauri, StarBright, StarLite, Juno, Juno+, Nova-II, Pulsar, Vega). Makes use of our new COM object.


Simple Measurement.vi

Program for those who want to use Centauri connected to IS1.5-VIS-FPD-800 or IS1.5-IRG-FPD-800 integrating sphere with LabVIEW 2017.
Note: In order to work with the application example, it is necessary to install the LabVIEW runtime engine 2017, downloadable from the National Instruments website.


Firmware - Centauri (latest version 2.11)

Embedded s/w for Centauri Laser Power / Energy Meter
Note: Firmware update is performed by downloading the files into a USB Flash disk from Ophir website and connecting it to the Centauri (see link above).
The firmware can't be updated via StarLab.

Specifications

  • Thermal Sensor Compatibility
    Yes
  • Photodiode Sensor Compatibility
    Yes
  • Pyroelectric Sensor Compatibility
    Yes
  • BeamTrack Sensor Compatibility
    Yes
  • Statistics
    Yes
  • Analog Out
    1, 2, 5, 10V
  • RS232
    Yes
  • USB
    Yes
  • Trigger Input/Output
    Yes
  • On-Board Data Storage
    As per USB Flash Drive used
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes

Features

Centauri: A New Experience in Laser Measurements

This video gives an overview of Ophir’s new high-end, 7" color touch-screen dual channel laser power/energy meter.

Introduction to the StarLab Laser Measurement Application

This video gives an overview of the StarLab application and its various functions. Part 1 of a series of video segments teaching you how to use StarLab.

Advanced 7 inch Graphical Display Capabilities

The bright color display gives unparalleled legibility and ease of interpreting information. Centauri has many on board features such as laser tuning, data logging, graphing, normalize, power or energy density, attenuation scaling, max and min limits.

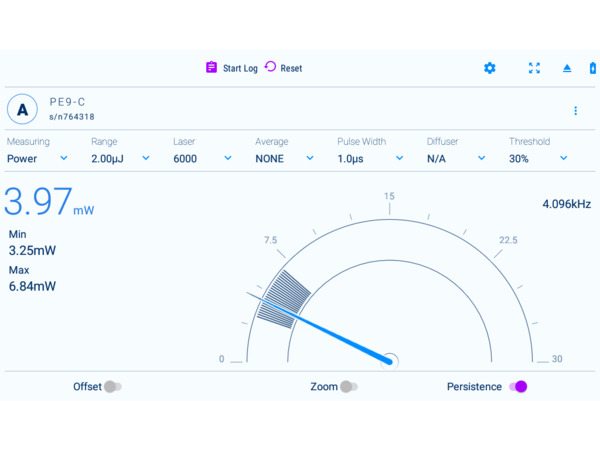

Analog Needle Display

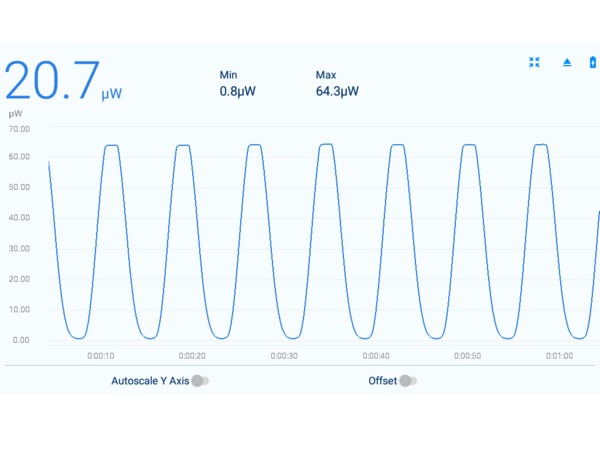

Line Graph Display

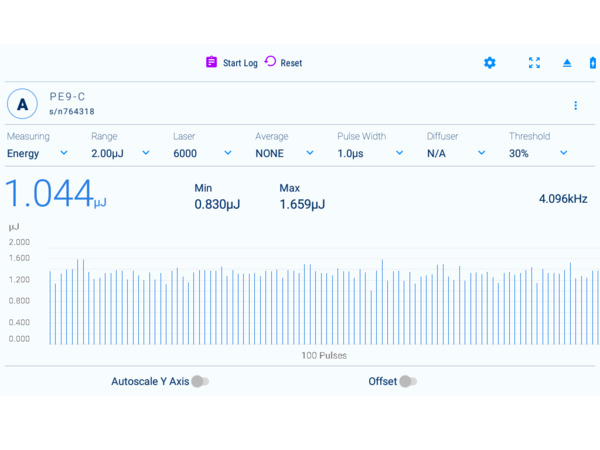

Pulse Chart Display

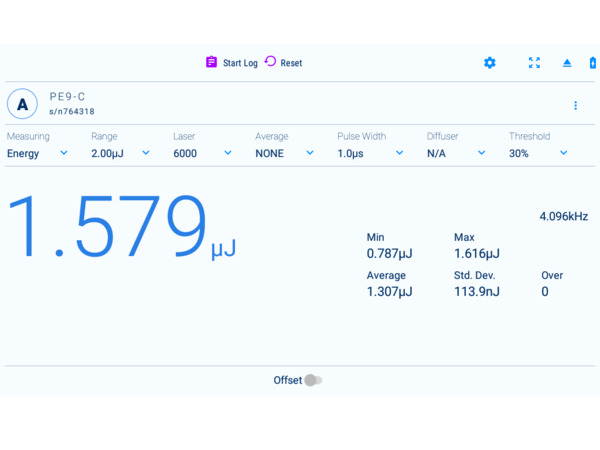

Statistics Display

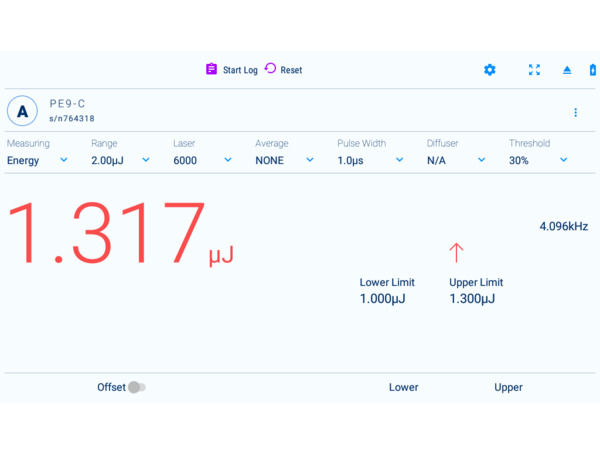

Pass/Fail QA Display

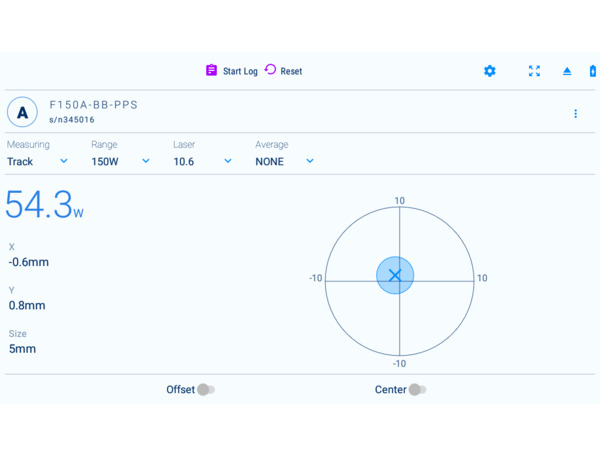

BeamTrack Position/Size Display

Dual Channel Capabilities

The Centauri’s dual channel capabilities enable the user to simply plug in any of Ophir’s thermal, pyroelectric or photodiode sensors and measure the two channels independently, or a comparison between the two channels.

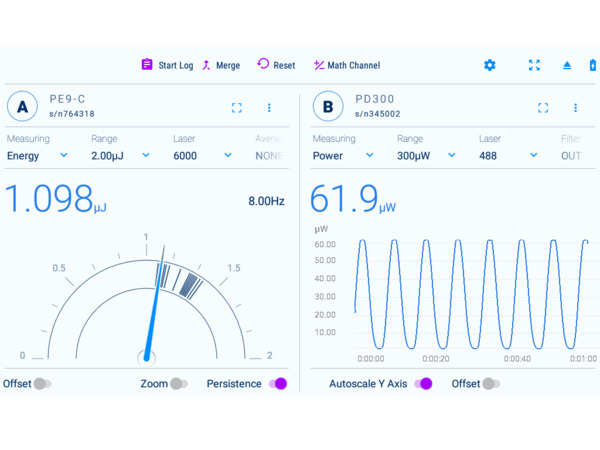

Two Independent Channels of Measurement

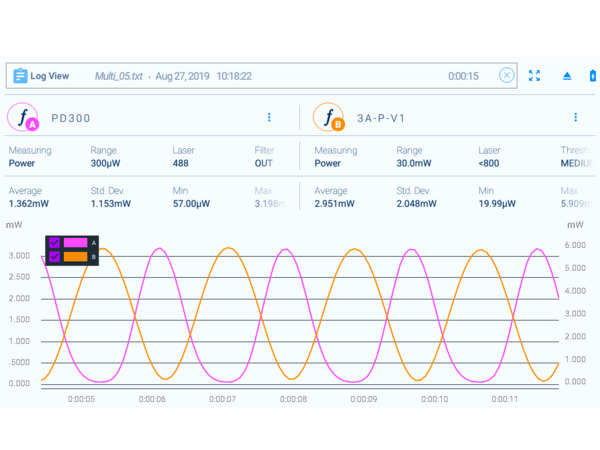

Two Channels Merging Into One Graph

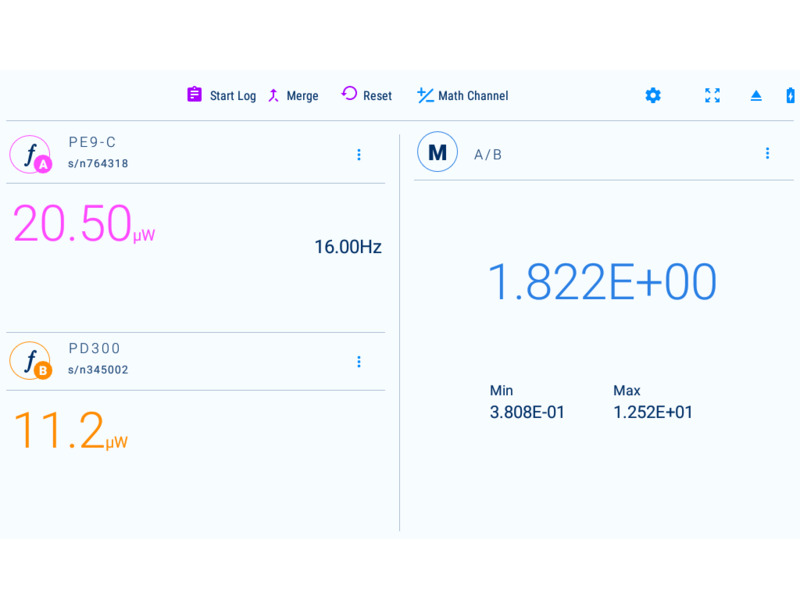

Advanced Math Functions

Math functions include: Density, Scale Factor, Normalize against base line, and more. Functions can be mixed together, compared, displayed graphically, and can also be logged.
