Compare Model Drawings, CAD & Specs Availability Price
7Z01250
Juno

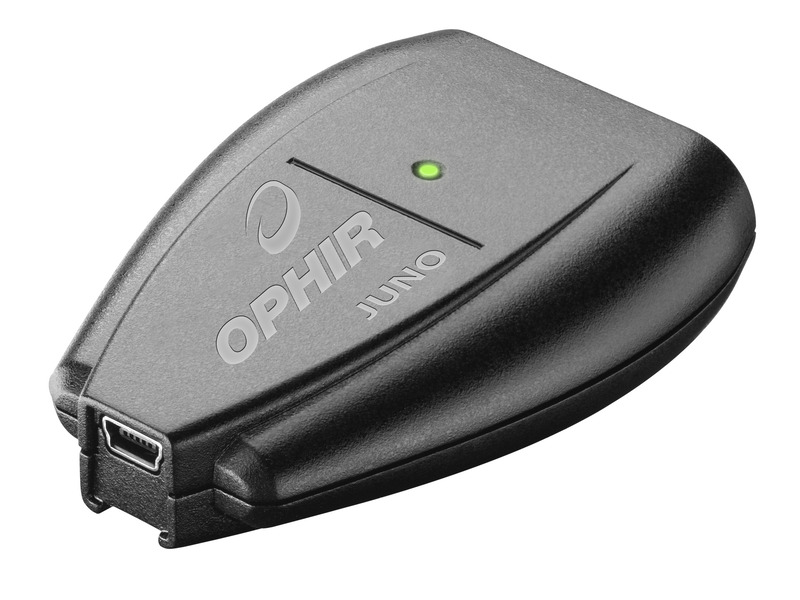

Juno Laser Power & Energy Meter, USB PC Interface
$744
In Stock
In Stock

Software

PC Software & Drivers

This section describes various ways to interface the Ophir meter to your PC as well as the software options available. Check out the datasheet for more details.


StarLab

The StarLab application together with an Ophir meter turns your PC or laptop into a full-fledged laser power/energy meter. Supports most Ophir laser power/energy sensors. Up to 8 sensors can be displayed at once on one PC. By using the Ophir COM Object, you can control the device from your own application. Supports the Ariel, Centauri, StarBright, StarLite, Juno, Juno+, Nova II, Vega, Pulsar-1/2/4, Quasar, EA-1 and Ariel devices.


LabVIEW

Library supplied for a complete measurement interface with most of our USB speaking devices (Centauri, StarBright, StarLite, Juno, Juno+, Nova-II, Pulsar, Vega). Makes use of our new COM object.


StarViewer

StarViewer turns your Android or iOS based smartphone into a portable Ophir laser power / energy measurement monitor.
The iOS version of StarViewer works with Ariel sensor.
The Android version of StarViewer works with Ariel, as well as with Juno and Quasar interfaces.


Firmware - Juno (latest version 1.53)

Embedded Software for Juno Interface
Use StarLab to upgrade the firmware of your device. Follow the step-by-step instructions (see link above).

Specifications

  • Thermal Sensor Compatibility
    Yes
  • Photodiode Sensor Compatibility
    Yes
  • Pyroelectric Sensor Compatibility
    Yes
  • BeamTrack Sensor Compatibility
    Yes
  • Statistics
    Yes
  • Analog Out
    No
  • Trigger Input/Output
    No
  • Power Supply
    USB bus powered
  • USB
    Yes
  • Data Transfer Rate
    10,000 Hz
  • On-Board Data Storage
    No
  • Automation Interface
    Yes
  • Labview VI's
    Yes
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes

Features

Laser Measurement PC Interfaces

If all your laser measurement work involves a laptop or a PC, rather than a stand-alone meter, one of Ophir's direct-to-PC interfaces could be an ideal solution. These are full-fledged Laser Power and Energy meters, but instead of having a separate on-board display, the PC becomes your display. In this video you will learn about the range of PC Interfaces available from Ophir.

Introduction to the StarLab Laser Measurement Application

This video gives an overview of the StarLab application and its various functions. Part 1 of a series of video segments teaching you how to use StarLab.

StarLab 3.0: Introduction and First Steps

This video explains the various items on the StarLab screen, and shows you how to perform basic laser measurements. Part 1 of a series of video segments teaching you how to use StarLab.

StarLab 3.0: Second Steps

Sometimes we want to not only get a reading, but perform additional processing on the reading. This video shows you how to use various functions in StarLab, such as Averaging, Scale Factor, Normalize, Density, etc. Part 2 of a series of video segments teaching you how to use StarLab.

Ophir Laser Measurement Virtual Meters

If all your laser measurement work involves a laptop or a PC, one of Ophir's direct-to-PC virtual meters could be an ideal solution. These are full-fledged Laser Power and Energy meters, and - together with the sensor and Ophir’s powerful StarLab software application - turn your PC into a full-function, multi-channel laser measurement workstation.

In this webinar, you will learn about the range of virtual meters and interface options available from Ophir.
