Compare Model Drawings, CAD & Specs Availability Price
SupIR 25-150mm f/1.4

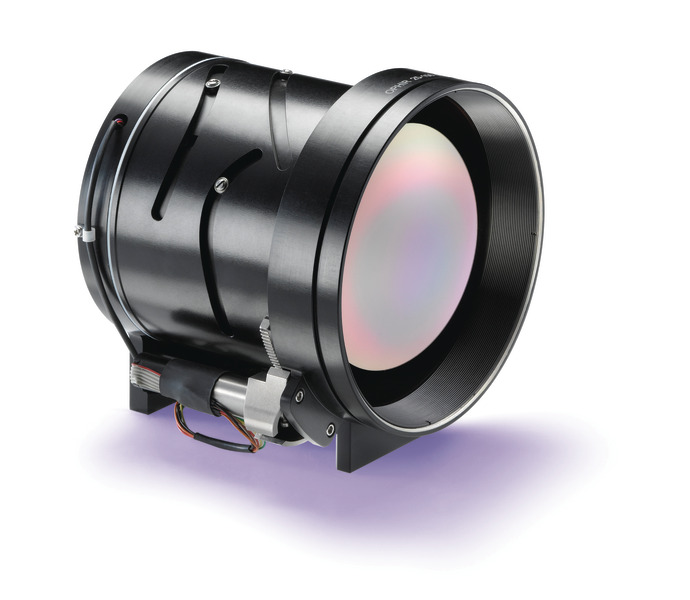

LWIR Motorized Continuous Zoom Lens, SupIR, 25-150 mm FL, f/1.4, High Durability, XGA
SupIR 25-150mm f/1.4
LWIR Motorized Continuous Zoom Lens, SupIR, 25-150 mm FL, f/1.4, Hard Carbon, XGA

WFOV (25 mm)

Pitch 320x240 640x480 1024x768 1280x1024
25 µm 18.5° 37.9°
17 µm 12.5° 25.3° 41.5°
12 µm 9.4° 18.9° 28.7° 36.3°

NFOV (150 mm)

Pitch 320x240 640x480 1024x768 1280x1024
25 µm 3.0° 6.1°
17 µm 2.1° 4.1° 6.6°
12 µm 1.5° 2.9° 4.6° 5.8°


  • Type
    Continuous Zoom
  • Focal Length
    25-150 mm
  • F/#
  • Spectral Range
    8-12 µm
  • Back Focal Length
    ≥28mm in air
  • HD Format
  • Minimum Focus Range
    1.2m Wide, 45m Narrow
  • Nuc (by defocus)
  • Focus Mechanism
  • Focus Time
    ≤8 sec
  • Zoom Mechanism
  • Zoom Time
    ≤8 sec
  • Operating Temperature Range
    -32°C to +80°C
  • Storage Temperature Range
    -54°C to +85°C
  • Sealing
    IP 67 front element only
  • Drive Voltage
    12 V
  • Current Consumption
    0.3 A average, 0.8 A peak
  • Communication Interface
  • Wavelength Region

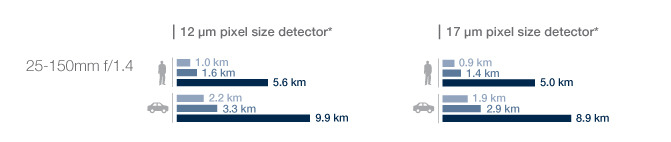

SupIR 25-150mm f/1.4 Detection, Recognition & Identification (DRI) Range

* Assumptions: 50mK NETD (f/1.0) for LWIR uncooled detectors | 30Hz frame rate | 50% detection probability | 0.2km-1 atmospheric attenuation coefficient | human ΔT = 5°C | vehicle ΔT = 2°C

DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!

The calculations used here are based on the “Johnson Criteria”. According to the Johnson Criteria, the minimum resolution, pixels on target, required to achieve a 50% probability for an observer to discriminate an object are:

  • Detection: An object is present – 2 pixels on target (Lower Bar)
  • Recognition: discern the type of object, a human vs. a vehicle – 8 pixels on target (Middle Bar)
  • Identification: discern specific objects, a man vs. a woman, a car model – 12.8 pixels on target (Upper Bar)

Your Long Range Distance Needs Met

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

  • Physical Vapor Deposition (PVD) – Thermal heating and electron gun
  • Ion Assisted Deposition (IAD) – Ion gun
  • Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
