Laser Focus Spot Analyzer

Ophir's Laser Focus Spot Analyzer

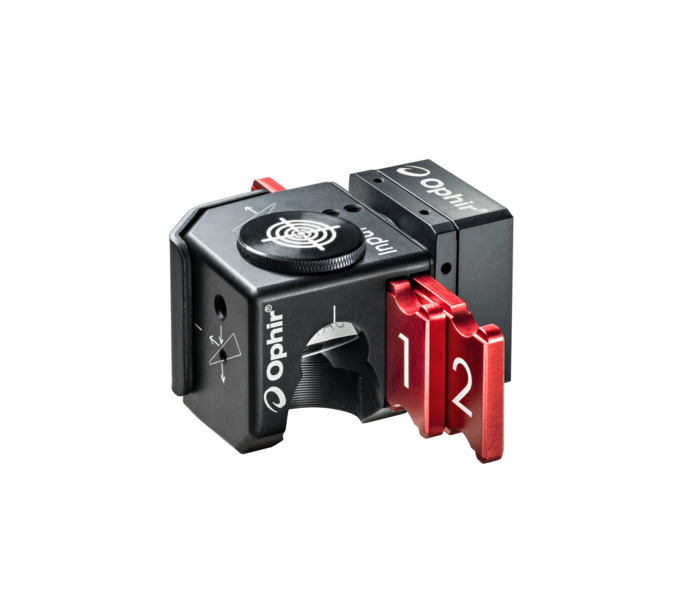

Captures the beam size, shape and profile at focus. The FSA can also be used to measure how the focal spot shifts with power during its critical start-up phase. The FSA includes a camera, beam splitter, ND filters and BeamGage software.

Image focal spots a small as 27.4 µm

Captures focal spot position with ±50 µm accuracy

For laser powers up to 400 W

Can measure systems with a focal length as short as 73 mm

Produces undistorted sample of laser under test

Adjustable attenuation maximizes system dynamic range

Specifications depend on models

See All Features

Show entries

Search:

Compare	Model	Spectral Range	Beam Size	Sensor Type	Elements	Availability	Brand
SP90603 FSA-HP-NIR-SP932U Laser Focal Spot Analyzer, 1000-1100 nm, BeamGage Professional In Stock	SP90603 FSA-HP-NIR-SP932U Laser Focal Spot Analyzer, 1000-1100 nm, BeamGage Professional	1000-1100 nm	34.5 µm - 5.3 mm	Silicon CMOS	2048 x 1536	In Stock	Ophir
SP90614 FSA-UV-SP932U Laser Focal Spot Analyzer, 300-400 nm, BeamGage Professional In Stock	SP90614 FSA-UV-SP932U Laser Focal Spot Analyzer, 300-400 nm, BeamGage Professional	300-400 nm	34.5 µm - 5.3 mm	Silicon CMOS	2048 x 1536	In Stock	Ophir
SP90615 FSA-VIS-SP932U Laser Focal Spot Analyzer, 400-950 nm, BeamGage Professional Contact Us	SP90615 FSA-VIS-SP932U Laser Focal Spot Analyzer, 400-950 nm, BeamGage Professional	400-950 nm	34.5 µm - 5.3 mm	Silicon CMOS	2048 x 1536	Contact Us	Ophir
SP90616 FSA-NIR-SP932U Laser Focal Spot Analyzer, 950-1100 nm, BeamGage Professional In Stock	SP90616 FSA-NIR-SP932U Laser Focal Spot Analyzer, 950-1100 nm, BeamGage Professional	950-1100 nm	34.5 µm - 5.3 mm	Silicon CMOS	2048 x 1536	In Stock	Ophir
SP90617 FSA-BB-SP932U Laser Focal Spot Analyzer, 300-1100 nm, BeamGage Professional In Stock	SP90617 FSA-BB-SP932U Laser Focal Spot Analyzer, 300-1100 nm, BeamGage Professional	300-1100 nm	34.5 µm - 5.3 mm	Silicon CMOS	2048 x 1536	In Stock	Ophir
SP90651 FSA-UV-SP402S Laser Focal Spot Analyzer 300-400 nm, BeamGage Professional 6 Weeks	SP90651 FSA-UV-SP402S Laser Focal Spot Analyzer 300-400 nm, BeamGage Professional	300-400 nm	2.74 µm - 12 mm	Silicon CMOS	4512 x 4512	6 Weeks	Ophir
SP90652 FSA-VIS-SP402S Laser Focal Spot Analyzer 400-950 nm, BeamGage Professional 6 Weeks	SP90652 FSA-VIS-SP402S Laser Focal Spot Analyzer 400-950 nm, BeamGage Professional	400-950 nm	2.74 µm - 12 mm	Silicon CMOS	4512 x 4512	6 Weeks	Ophir
SP90653 FSA-NIR-SP402S Laser Focal Spot Analyzer 950-1100 nm, BeamGage Professional 6 Weeks	SP90653 FSA-NIR-SP402S Laser Focal Spot Analyzer 950-1100 nm, BeamGage Professional	950-1100 nm	2.74 µm - 12 mm	Silicon CMOS	4512 x 4512	6 Weeks	Ophir
SP90654 FSA-BB-SP402S Laser Focal Spot Analyzer 300-1100 nm, BeamGage Professional 6 Weeks	SP90654 FSA-BB-SP402S Laser Focal Spot Analyzer 300-1100 nm, BeamGage Professional	300-1100 nm	2.74 µm - 12 mm	Silicon CMOS	4512 x 4512	6 Weeks	Ophir

Showing 1 to 9 of 9 entries

Previous1Next

BeamGage Standard

BeamGage Standard is our full-function software with an extensive set of ISO quantitative measurement, our patented UtraCal™ algorithm for the highest accuracy measurements in the industry.

BeamGage Professional

BeamGage Professional has all of the functionality that BeamGage Standard includes. BeamGage Professional supports all of our beam profiling cameras, includes window partitioning to allow analysis of multiple beams on a single camera, and includes an automation interface written in .NET to push data to your custom applications.
