Accessories and Integrated Beam Profiling Solutions

Our unparalleled collection of cameras, beam splitters/attenuators, beam expanders, beam reducers, UV to visible light converters, and other components that allow you to profile almost any beam desired. You can profile powers up to thousands of watts using our beam attenuators. You can profile a very wide range of wavelengths from far UV to far IR. You can profile a focal spot of a converging beam or a diverging beam.

We recommend using Beam Profiler Finder to find the optimized configuration that best meets your specific needs or consult Ophir representative.

Beam Profiler Accessories

Ophir provides adapters that allow you to easily attach and align these devices to each other as shown below.

P/N Description LBS-100 LBS-300s LBS-400 Stackable beam splitters

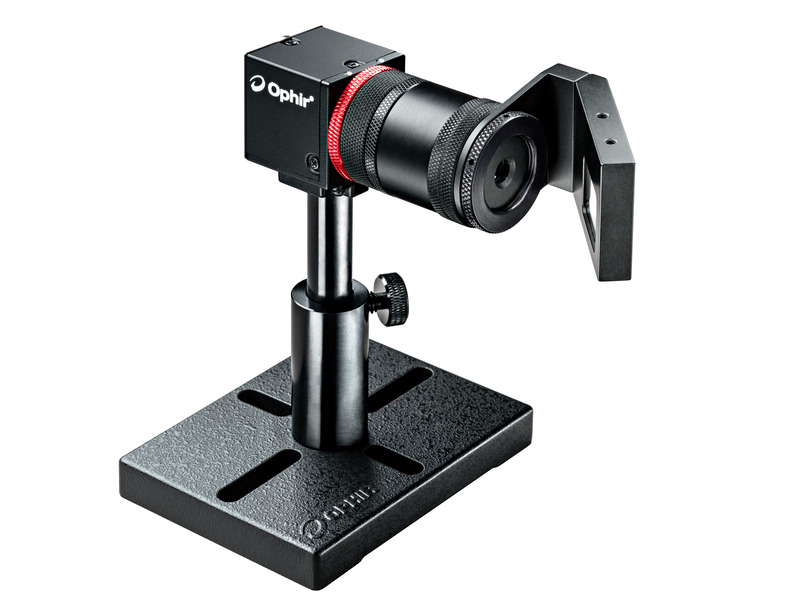

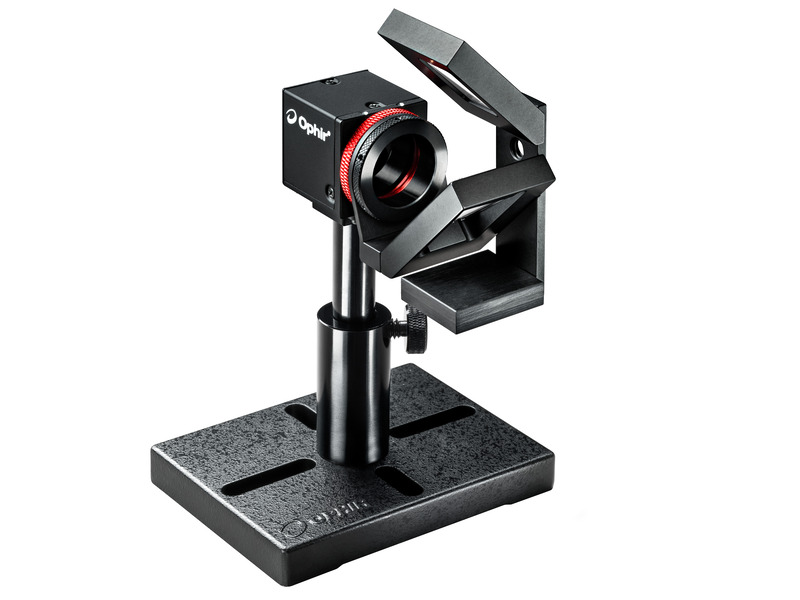

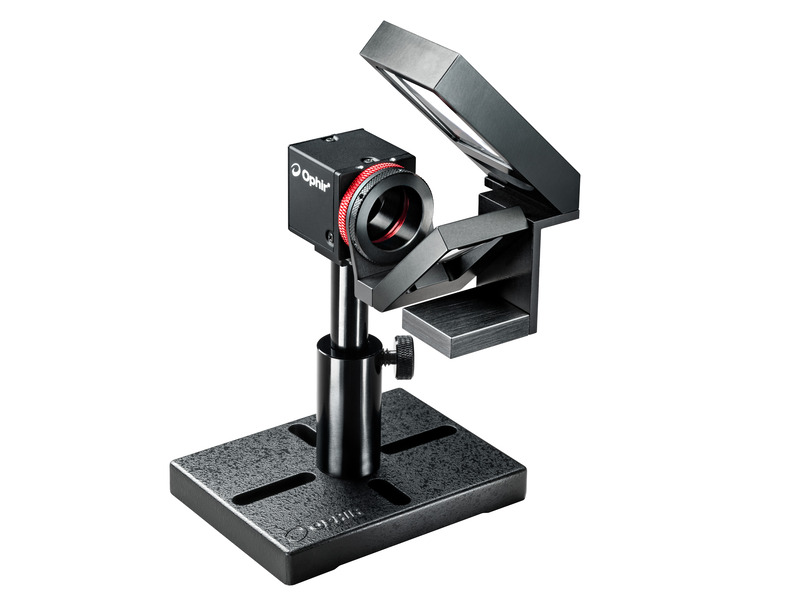

SPZ17027 + SPZ17025 SPZ17015 + SPZ17025 SPZ17015 + SPZ17026

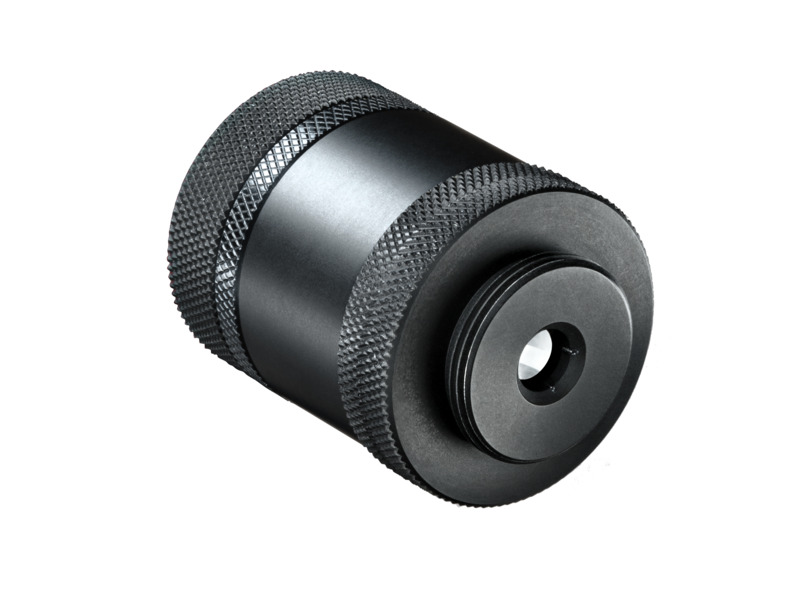

SPZ17022 4X beam expander SP90567 + SPG01698 Direct connection

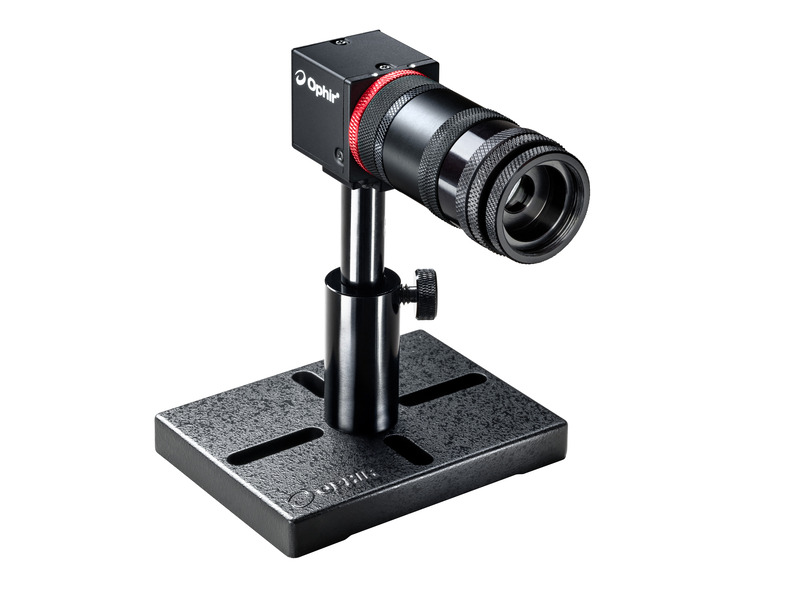

SPZ17022 + SPZ17019 4X beam expander + UV converter Direct connection Direct connection

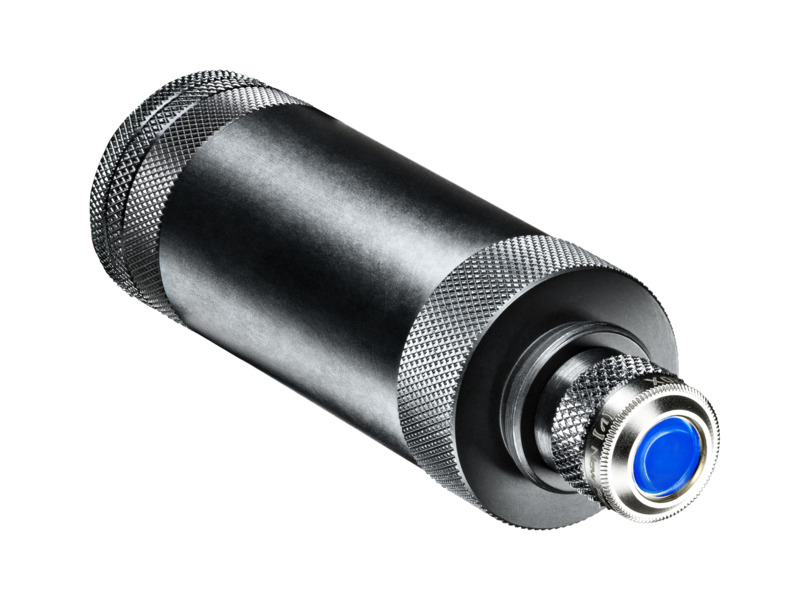

SPZ08257 6X beam expander SP90567 + 4ea. SPG02067 SP90567 + 4ea. SPG02067

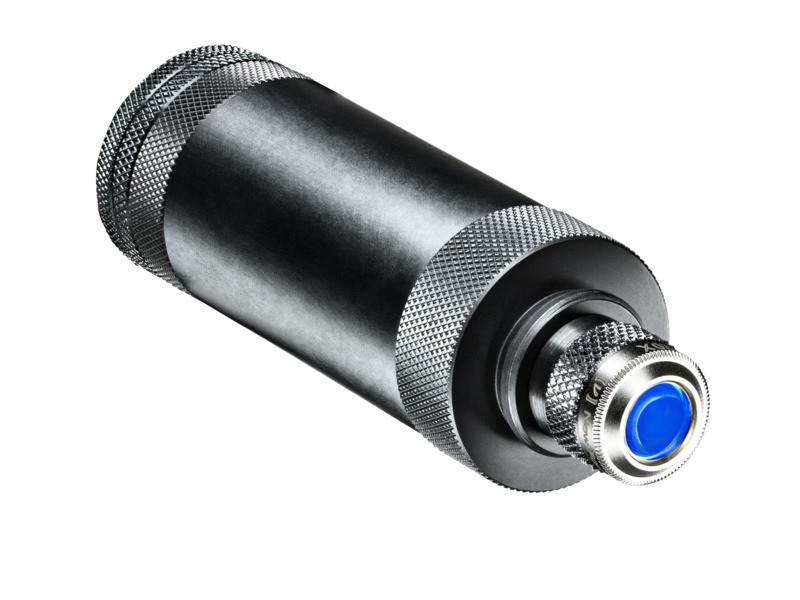

SPZ08259 12X beam expander SP90567 + 3ea. SPG02067 SP90567
SPZ08260 22X beam expander SP90567 SP90567

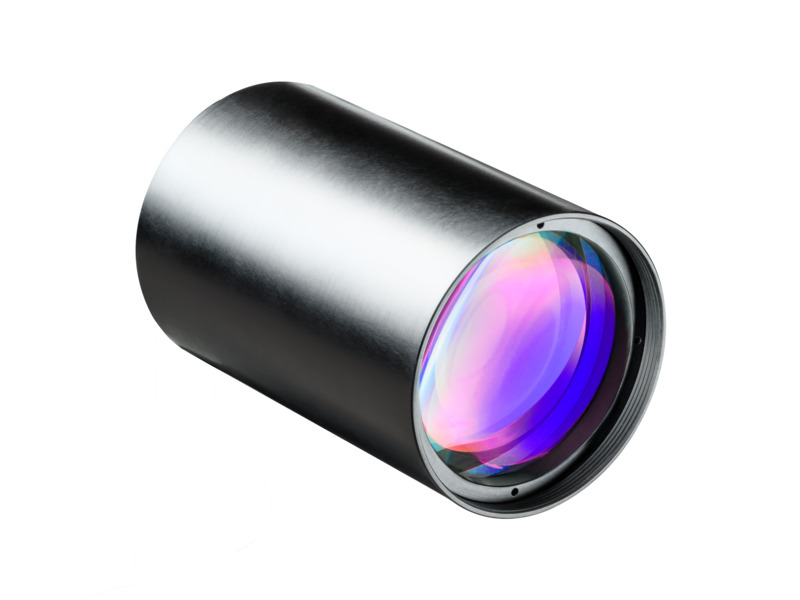

SPZ17017 4X beam reducer SPZ17029 SP90569 SP90570 SP90569
SPZ17024 4X beam reducing UV converter SP90569 SP90570 SP90569

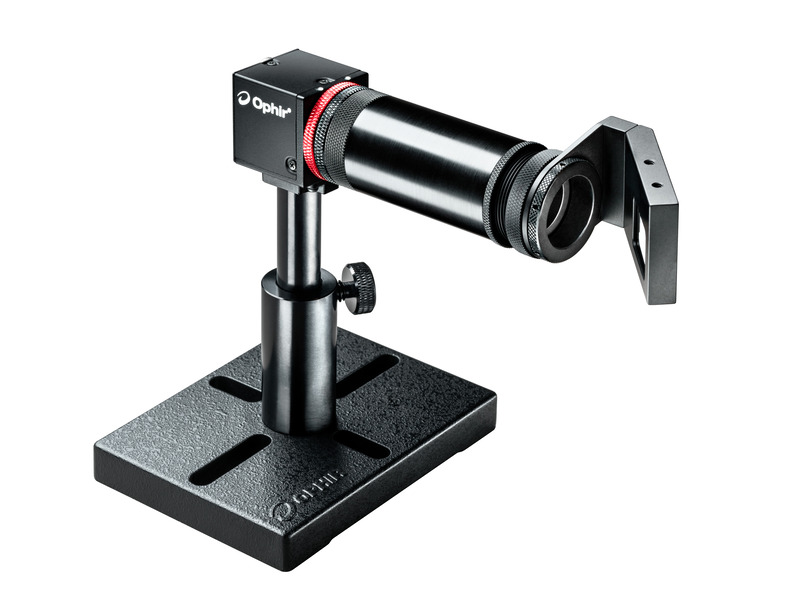

SPZ17023 1X UV converter Direct connection Direct connection

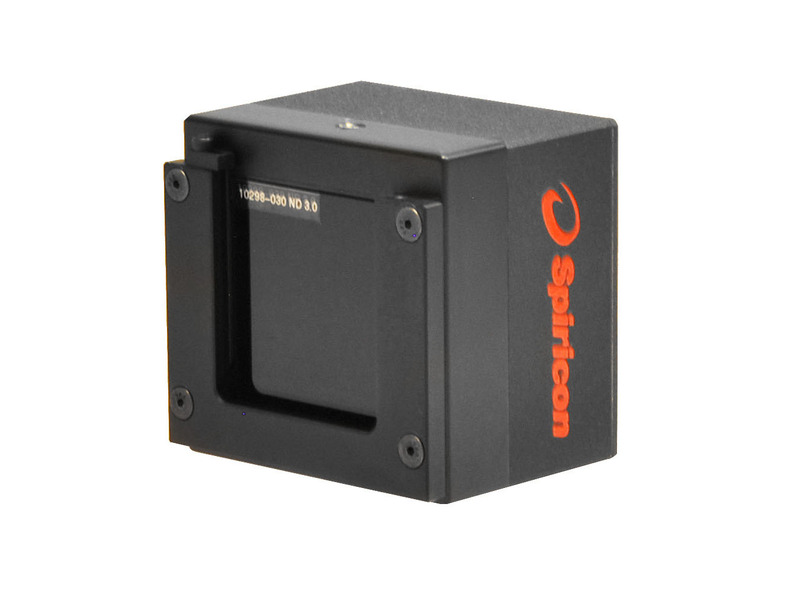

SP90320 L11059 SP90571 SP90439
SP90553 Wide Beam Imager SP90572
SP90405/SP90415 Pyrocam IIIHR Supplied with Pyrocam SP90510 Supplied with Pyrocam
SP90404/SP90414 Pyrocam IV SP90573 SP90510 SP90573
Nanoscan Direct connection Direct connection Direct connection
All C-Mount thread cameras Direct connection Direct connection SP90352 Direct connection
