Beam Splitter Attachment, High Power NIR Lasers, 1064 nm


  • Spectral Range
    1000-1100 nm
  • Reflection
    0.000025% - 0.0001%
  • Minimum Power
    100 mW
  • Damage Threshold
    5 kW for up to 10 min
    15 MW/cm², 10 J/cm² at beam splitter
  • Material
    UV-Grade Fused Silica
  • Surface Accuracy
  • Interface
  • Clear Aperture
    15 mm


LBS-300-HP-NIR Overview

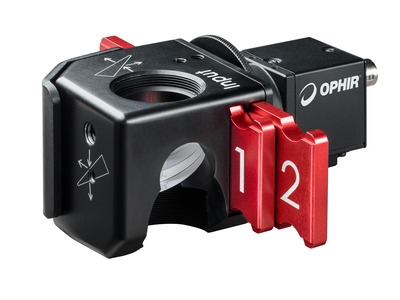

The LBS-300HP-NIR beam splitter allows camera-based beam profiling for high power lasers.

Uniform Attenuation of Any Beam Shape

Each optical path through the LBS-300HP-NIR provides uniform attenuation of any beam shape (Gaussian, flat-top, doughnut, etc.) while preserving the polarization and overall profile of the incoming laser beam thus providing accurate sample of incident beam. A 1.035-40 thread is provided behind each wedge along the axis of the output beam. These can be used to directly mount accessories with 1” lens tubes such as beam dumps or power/energy sensors.


  • Laser cutter alignment
  • Additive Manufacturing
  • Selective laser melting (SLM)
  • Direct metal laser melting (DMLM)
  • Laser powder bed fusion (LPBF)
  • 3D printing
