Compare Model Drawings, CAD & Specs Availability Price
7Z02706

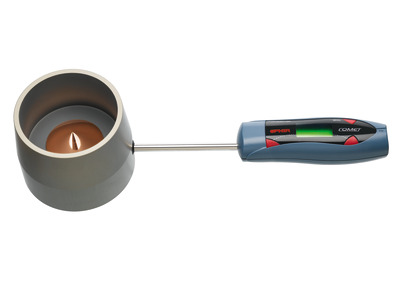

Comet 10K-HD
Portable Thermal Power Puck Sensor, Comet-HD, 0.2-10 kW, Ø55 mm, 980-1070 nm/10.6 µm
$1,383

Specifications

  • Product Name
    Comet 10K-HD
  • Spectral Range
    0.98-1.07 µm and 10.6 µm
  • Aperture Size
    Ø55 mm
  • Minimum Power
    200 W
  • Maximum Average Power
    10,000 W
  • Maximum Average Power Density
    2 kW/cm²
  • Maximum Energy Density <100 ns
    1 J/cm²
  • Maximum Energy Density 2 ms
    45 J/cm²
  • Dimensions
    355 x 87 x 110 mm
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes

Features

Meet the Comet family of Laser Power Probes

Meet the Comet family of Laser Power Probes -- accurate, low cost meters that are self-contained, and fast and easy to use in industrial settings.

Choosing a Thermal Sensor

In this short “Basics” video we review the use – and selection - of thermal sensors for measuring low, medium and high laser powers.

Thermal Power Sensor Accuracy

Ophir former CTO Dr. Ephraim Greenfield discusses the various factors that contribute to uncertainties in measurement when using Ophir laser power and energy meters.

Effects of Incidence Angle on Measurements

In this video, you will learn to what degree a beam’s incidence angle matters, and for which sensor types this should be taken into account.
