Compare Model Drawings, CAD & Specs Availability Price
SP90608
BM-USB3-SP932U

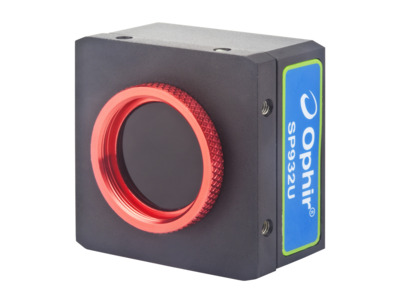

SP932U Laser Beam Profiler, 2048 x 1536 px, 24 fps, 190-1100 nm, USB 3.0, BeamMic Software
$3,970
5 Weeks
5 Weeks

BeamMic

BeamMic is our entry-level software for the laser user or technician who has only basic beam profiling needs. It uses our patented UtraCal™ algorithm for the highest accuracy measurements in the industry.

Specifications

  • Spectral Range
    190-1100 nm
  • Beam Size
    34.5 µm - 5.3 mm
  • Sensor Type
    Silicon CMOS
  • Communication
    USB 3.0
  • Elements
    2048 x 1536
  • Compatible Light Sources
    CW, Pulsed
  • Active Area
    7.06mm x 5.3mm
  • Dynamic Range
    72 dB
  • Effective Pixel Pitch
    3.45 μm
  • Full Resolution Frame Rate
    24 fps
  • Software
    BeamMic
  • China RoHS Compliance
    Yes
  • UKCA Compliance
    Yes
  • CE Compliance
    Yes

Features

Fundamentals of Laser Measurement & Beam Profiling

Is your laser's beam profile shaped correctly for your application? This video teaches the fundamentals of laser beam profiles and discusses the benefits of profiling your laser beam. Several case studies are presented showing before and after laser beam profiles.

Measuring Laser Focus Spot Size in an industrial Medical Device Application

This step-by-step tutorial will show you how to set up a camera-based beam profiling system on an industrial single-pulse laser welding system. It will also demonstrate for you how to simultaneously analyze the laser's focused spot, measure the laser's energy per pulse, and measure its temporal pulse shape.

Designing Laser Beam with BeamMaker

BeamMaker helps engineers, technicians, and researchers understand a beam's modal content by creating a theoretically generated beam. Design your perfect beam profile in BeamMaker by specifying the mode, size, width, height, intensity, angle, and noise content - then configure your laser to run the as designed, and compare your actual beam to the theoretically derived measurements. The end result is knowledge about how much the real beam varies from the desired beam.

Laser Beam Profiler Accessories

When performing beam profiling measurements on a laser, it is sometimes necessary to manipulate the beam in order to achieve a signal that is suitable to be measured. Occasionally, the beam needs to be sized correctly by either increasing it if it is too small, or increasing it if it is too large. Often times, the laser’s power needs to be reduced to a certain level to be imaged. Our laser beam profiler accessories allow you to achieve proper beam sizes and power levels so that you can achieve the most accurate measurements possible.
