Microscope Objectives for Beam Profilers
Microscope Objectives for Beam Profilers

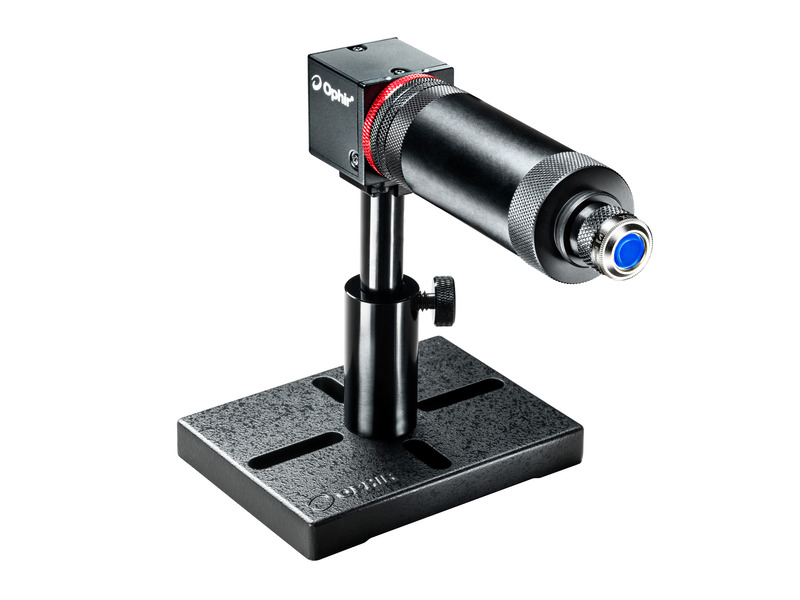

These microscope objectives are available for expanding the beam. There are objectives for 6X, 12X, and 22X expansion. The various expanders allow the use of our ND1, ND2 and ND3 filters as well as the variable attenuator so as to accommodate the camera to a wide range of source intensities.
- 6X, 12X, or 22X expansion
- C-mount
- 530 to 1070 nm wavelength range See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SPZ082576X expanding microscope objectiveBeam Expanding Microscope Objective, 6X, 4.5 mm Recess & CS-mount Cameras | In Stock | ||||

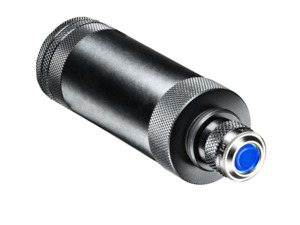

 | SPZ0825912X expanding microscope objectiveBeam Expanding Microscope Objective, 12X, 4.5 mm Recess & CS-mount Cameras | In Stock | ||||

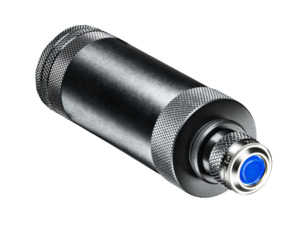

 | SPZ0826022X expanding microscope objectiveBeam Expanding Microscope Objective, 22X, 4.5 mm Recess & CS-mount Cameras |
Specifications
- InterfaceC-mount
- Spectral Range530-1100 nm
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SPZ17019UV Converter, 193-360 nm to Visible, 4X Beam Expander | In Stock | ||||
 | SPZ08261Spacer Assembly, 6X/12X/22X Objective to CS-mount Camera | In Stock | ||||
 | SPZ17027Beam Splitter, 190-2500 nm, 4X Beam Expander | In Stock | ||||
 | SPZ170262nd Wedge Beam Splitter, Ø15 mm, 193-2500 nm | |||||
 |
Resources
Catalogs
Laser Beam Profilers Catalog (7.6 MB, PDF)
