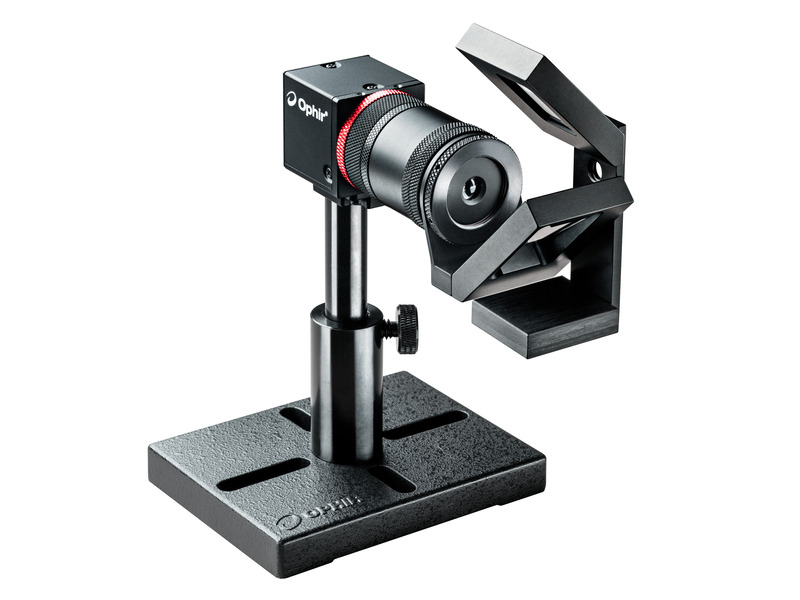

Stackable Wedge Beam Splitters

Stackable Wedge Beam Splitters

Products
Resources
Contact Us

Overview

The stackable beam splitters are designed for maximum modularity and shortest beam path. They are compatible with almost all of our cameras having the standard C mount thread and can mount either to other attenuators or to the camera itself.

Maximum modularity
Shortest beam path
Compatible with most of our cameras

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		SPZ17015 1st Wedge Beam Splitter 1st Wedge Beam Splitter, Ø15 mm, 193-2500 nm $736 8 Weeks	SPZ17015 1st Wedge Beam Splitter 1st Wedge Beam Splitter, Ø15 mm, 193-2500 nm	UNIVERSAL	0.0	1.0	0.0		1.0	8 Weeks		$736		Ophir
		SPZ17026 2nd Wedge Beam Splitter 2nd Wedge Beam Splitter, Ø15 mm, 193-2500 nm $736 In Stock	SPZ17026 2nd Wedge Beam Splitter 2nd Wedge Beam Splitter, Ø15 mm, 193-2500 nm	UNIVERSAL	0.0	1.0	0.0		2.0	In Stock		$736		Ophir
		SPZ17025 Large Aperture Wedge Beam Splitter 2nd Wedge Beam Splitter, Large Aperture, Ø30 mm, 193-2500 nm $849 In Stock	SPZ17025 Large Aperture Wedge Beam Splitter 2nd Wedge Beam Splitter, Large Aperture, Ø30 mm, 193-2500 nm	UNIVERSAL	0.0	1.0	0.0		3.0	In Stock		$849		Ophir
		SPZ17031 1st Wedge Beam Splitter 1st Wedge Beam Splitter, Ø15 mm, 1064 nm $1,275 Show	SPZ17031 1st Wedge Beam Splitter 1st Wedge Beam Splitter, Ø15 mm, 1064 nm	UNIVERSAL	0.0	1.0	0.0		4.0	Show		$1,275		Ophir
		SPZ17032 2nd Wedge Beam Splitter 2nd Wedge Beam Splitter, Ø15 mm, 1064 nm $1,275 8 Weeks	SPZ17032 2nd Wedge Beam Splitter 2nd Wedge Beam Splitter, Ø15 mm, 1064 nm	UNIVERSAL	0.0	1.0	0.0		5.0	8 Weeks		$1,275		Ophir

Show All

Specifications

Spectral Range

190-2000 nm
Reflection

≤6% (BB), ≤1% (NIR)
Damage Threshold

>5 J/cm² for 10ns pulses

Material

UV-Grade Fused Silica
Interface

C-mount

Specifications

Spectral Range

190-2000 nm
Reflection

≤6% (BB), ≤1% (NIR)
Damage Threshold

>5 J/cm² for 10ns pulses

Material

UV-Grade Fused Silica
Interface

C-mount

Resources

Data Sheets

Stackable Beam Splitter Datasheet (174.5 kB, PDF)

Catalogs

Laser Beam Profilers Catalog (7.6 MB, PDF)

Technical Notes

Resources

Data Sheets

Stackable Beam Splitter Datasheet (174.5 kB, PDF)

Catalogs

Laser Beam Profilers Catalog (7.6 MB, PDF)

Technical Notes
