PD300-UV

7Z02413
Description:

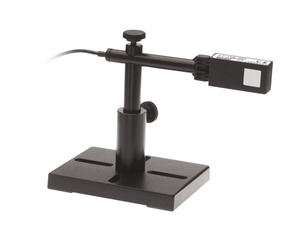

The PD300-UV is a wide spectral range photodiode laser measurement sensor. It has a 10x10mm aperture with swivel mount and a removable filter. Without filter, its spectral range is from 200 to 1100nm and its power measuring range is from 20pW to 3mW. With filter the spectral range is 220nm to 1100nm and the power range is 2µW to 300mW. The sensor comes with a 1.5 meter cable for connecting to a meter or PC interface.

Specification

  • N.A.
  • 10x10mm
  • 200-1100nm
  • 20pW-300mW
  • N.A.
  • N.A.
  • 120 L x 13 W x 21 D (mm)
  • 50µJ
  • 10W/cm²
  • 0.2 s
  • N.A.
  • N.A.
  • 300mW
  • N.A.
  • CE, UKCA, China RoHS
Need help finding the right sensor? Try our Sensor Finder

FAQ

How do I take off the removable filter from the PD300?

Removing External Filter from PD300:


Step 1 – Starting position




Step 2




Step 3

Was this FAQ helpful to you? yes no
Close

Can I use a sensor from the PD300 family to measure average power of pulsed lasers?

In general yes, but several technical issues need to be kept in mind (most of which are results of the fast physical response time of these sensors):

  • The pulse rate should be more than about 30Hz, otherwise the reading is unstable. At higher pulse frequencies, the sensor will respond as if the beam were CW.
  • It is possible for a pulsed beam to have average power within the sensor spec and yet have the energy of the pulses themselves be high enough to cause a momentary saturation of the sensor. It is important to be sure that pulse energy is also within sensor spec (the parameter "Max pulse energy" is included in all specs for the PD300 family, for just this reason).
  • The beam diameter should be no less than about 1mm .
  • The average power and power density restriction in the spec should not be exceeded



Note: At the maximum pulse energy limit given in the spec, the reading will be saturated by about 5%, i.e. the reading will be about 5% lower than it should be. At 1/3 the maximum, the saturation will be about 1%.

Was this FAQ helpful to you? yes no
Close

Can a lost PD300 filter be replaced?

Technically it could be replaced, but it is not just a matter of replacing the filter. Since the PD300 is a "calibrated" sensor it requires that the filter also be "calibrated". Especially since the PD300 response varies with wavelength, it requires that both the PD300 and the filter be calibrated over the entire spectral range with a monochromator. Because of the cost to calibrate the replacement filter with the PD300 sensor, we recommend purchasing a new PD300 sensor when a replacement filter is needed.

Was this FAQ helpful to you? yes no
Close

The total error when using a PD-300 head is listed as +/- 3%. Is that 3% of the reading or 3% of the total range?

It's +/-3% of the reading from full scale down to 5% of full scale. Below 5% of full scale one should switch to next range down for the best accurate linear results.

Was this FAQ helpful to you? yes no
Close

Do I need to recalibrate my instrument? How often must it be recalibrated?

Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Was this FAQ helpful to you? yes no
Close

Can I use a PD300 photodiode sensor to measure power of a scanned beam?

For measuring power of a scanned beam we recommend using the BC20, and not the PD300. Since a scanned beam will spend only a fraction of the time of each scan on the detector, the average power measured by the detector will correspondingly be only a fraction of the actual power of the beam. The BC20 is specially designed for such applications by having a peak-hold circuit integrated in its electronics.

Was this FAQ helpful to you? yes no
Close

Can I use a PD300 sensor inside a thermal chamber, in which the temperature cycles beyond the recommended operating temperature range?

It should be okay, as long as:

  • the wavelength is not near the long wavelength limit where the PD300 has a large temperature dependence;
  • there is no condensation on the window of the detector which could interfere with the beam and affect the reading.

We suggest the customer does an experiment with a stable laser source (such as a pointer laser) shining in through a window onto the detector while the unit is temperature cycled to see if the reading changes. The final measurement should be back at the original temperature so as to make sure the laser hasn’t changed.

Was this FAQ helpful to you? yes no
Close

Why do Photodiode-based power sensors like the PD300 have a specified “Max pulse energy”?

Although these sensors measure average power (of both CW and repetitively pulsed beams), not pulse energy, it is possible for a pulsed beam to have average power within the sensor’s rated limits and yet have the energy of the pulses themselves be high enough to cause a momentary saturation of the sensor. It is important to be sure that pulse energy is also within sensor spec – not just the average power. This is explained in detail in this White Paper.

Was this FAQ helpful to you? yes no
Close

Calibration



Videos

FAQ: Photodiode Sensors for measuring very low laser powers FAQ: Photodiode Sensors for measuring very low laser powers
How to measure power of very low power pulsed laser beams How to measure power of very low power pulsed laser beams How to measure power of very low power pulsed laser beams

When using a photodiode laser power sensor to measure very low power pulsed beams (nW to mW), there are some issues you need to be aware of. This video shows you how to avoid some common problems and ensure maximum accuracy.

FAQ: Sensors for Measuring Laser Power FAQ: Sensors for Measuring Laser Power FAQ: Sensors for Measuring Laser Power

In this short “Basics” video we review in general how one goes about measuring laser beam power, so that you’ll have a clear basic understanding of what the different sensor types are, and when you would use which type.

Effects of Incidence Angle on Measurements Effects of Incidence Angle on Measurements Effects of Incidence Angle on Measurements

Are you measuring a laser beam coming at an angle correctly?
Ever wonder how your laser power measurements are affected by your beam’s angle of incidence?
In this video, you will learn to what degree a beam’s incidence angle matters, and for which sensor types this should be taken into account.

In this short “Basics” video, we review in general the use of photodiode sensors for measuring very low laser powers.

Tutorials

Tutorials and Articles

Laser Power Sensors introduction

As described in the general introduction, the thermopile sensor has a series of bimetallic junctions. A temperature difference between any two junctions causes a voltage to be formed between the two junctions. Since the junctions are in series and the «hot» junctions are always on the inner, hotter side, and the «cold» junctions are on the outer, cooler side, radial heat flow on the disc causes a voltage proportional to the power input. Laser power impinges on the center of the thermopile sensor disk (on the reverse side of the thermopile), flows radially and is cooled on the periphery. The array of thermocouples measures the temperature gradient, which is proportional to the incident or absorbed power. In principle, the reading is not dependent on the ambient temperature since only the temperature difference affects the voltage generated and the voltage difference depends only on the heat flow, not on the ambient temperature.

 Read more...

Common Reasons for Photodiode Sensor Damage or Out of Tolerance Conditions

We have included this document with your recent calibration order because we have noticed an out of tolerance condition obtained from your equipment when returned for calibration. This document was created to assist our valued customers in the proper care and maintenance of Ophir photodiode sensors. The following information is for reference only. If you have any reason to believe that the sensor is no longer performing within the original specifications, we always recommend that you send it in for repair and/or recalibration by our trained technicians to bring the unit back to the proper NIST traceable standards.

Ophir photodiode sensors can be used for many years without any repairs when used with the proper laser optical setup. Many of our customers have sensors that are using their original absorber that are over ten years of age. We hope that this document will enable you to also enjoy the long life and reliable results that Ophir- Spiricon is known for.

 Read more...

How to Properly Select a Laser Power or Energy Sensor

The selection of a sensor to accurately measure the power of a laser or energy of a pulsed laser can seem like a simple and easy procedure. However, many times the selection process is limited to choosing a sensor that only meets the range of power or energy to be measured, leaving out several other essential criteria of the laser specifications; that without their consideration, can allow the wrong sensor to be selected, the laser to be measured inaccurately and likely to cause the sensor to fail prematurely.

Watch Our Laser Measurement Video

 Read more...

Effect of Ambient Conditions on Laser Measurements

We are often asked about the specified ranges of various ambient conditions (temperature, humidity, etc.) for Ophir instruments. In this article we will clarify the effects of these conditions on laser measurements, so you’ll be able to use your Ophir laser measurement instrument effectively.

 Read more...

Measuring Average Power of Pulsed Lasers with Photodiodes

BackgroundWhen measuring average power using a photodiode detector such as PD300 or IS6-D-VIS, the maximum power or saturation power is determined by the maximal photocurrent that the photodiode can generate while still maintaining linearity. The saturation power is typically 3mW for a bare silicon photodiode. Adding attenuation in the form of a filter or through the use of an integrating sphere will naturally increase the saturation power of the sensor as a whole. Read more...

Fighting Viruses

The world remains in a continuing state of uncertainty due to the new COVID-19 coronavirus. Face masks and disinfectants are selling very well. Disinfection with UV light could offer a way of disinfecting larger areas without the use of chemical disinfectants, especially in hospitals where patients are being treated. Read more...

Ophir Power/Energy Meter Calibration Procedure and Traceability/Error Analysis

This document discusses the interpretation and basis for stated measurement accuracy of Ophir Laser Power/Energy meters.
1. General Discussion
2. Combination of Errors and Total Error
3. Analysis of Power and Energy Calibration Errors
4. Detailed Analysis of Power and Energy Calibration Errors

 Read more...

Laser Measurements in Materials Processing: How and When They Absolutely, Positively Must Be Made

19th century British physicist and engineer William Thomson, 1st Baron Kelvin, was the first to say, “If you can’t measure it, you can’t improve it.” When applying this principle to improving laser-based processes, there are a variety of parameters that must be measured. Given the continuously rising power of laser systems in material processing, the requirements for measurement systems are more challenging than ever. Which technologies are available to measure high-power lasers? How often should they be measured? What measurements should be tracked? When this data is collected, what should be done with it? Read more...

How do I know what range, or scale, to set my power/energy meter to? And what happens if I go over range?

Each given range represents one level of gain of an internal amplifier. The electronics, as always, have a limited Dynamic Range. If the measured signal is too low, in other words near the bottom of the range, then it may be lost in the noise and the reading will be inaccurate and noisy. If it’s too high – there may be saturation issues. To give an instrument a usefully wide dynamic range, multiple scales or ranges are used. Switching from range to range can be automatic (“Autorange”), or manual. Autoranging simply starts automatically at the least sensitive range and works its way down the ranges, sampling the signal as it goes, till it finds a range at which the signal is properly detected. Note, by the way, that only in POWER mode is Autoranging available. If we are working in Single Shot Energy mode, there is no Autoranging – simply because when we are measuring a single pulse, the instrument has no opportunity to work its way down the ranges as in Power mode.

 Read more...

White Paper – Low Frequency Power Mode

AbstractThis document describes the inherent problems involved with measuring average power for low frequency pulsed laser sources, and describes the new “Low Freq. Power Mode” being offered on many Ophir devices and meters to solve these problems. It describes how to use the new mode and mentions some tips for obtaining best results. Read more...

Types of power / Energy Laser Sensors General Introduction

Power and Single Shot Energy Sensors
Ophir provides two types of power sensors: Photodiode sensors and Thermal sensors. Photodiode sensors are used for low powers from picowatts up to hundreds of milliwatts and as high as 3W. Thermal sensors are for use from fractions of a milliwatt up to thousands of watts.
Thermal sensors can also measure single shot energy at pulse rates not exceeding one pulse every ~5s.

Repetitive Pulse Energy Sensors
For higher pulse rates, Ophir has pyroelectric energy sensors able to measure pulse rates up to tens of KHz. These are described in the energy sensor section, section 1.3.

 Read more...

Measuring Average Power of Pulsed Lasers with Photodiodes

BackgroundWhen measuring average power using a photodiode detector such as PD300 or IS6-D-VIS, the maximum power or saturation power is determined by the maximal photocurrent that the photodiode can generate while still maintaining linearity. The saturation power is typically 3mW for a bare silicon photodiode. Adding attenuation in the form of a filter or through the use of an integrating sphere will naturally increase the saturation power of the sensor as a whole. Read more...

5 Situations Where Laser Performance Measurement is Necessary

Measuring the performance of a laser has possible for a number of years and is accomplished with a variety of techniques. These electronic laser measurement solutions give the laser user more relevant, time-based data that shows trends in laser performance rather than single data points. While these solutions have provided laser users with the ability to present data in a simple and easy to understand manner, the application of the data still seems to be unclear to many laser users. Read more...
