WaterFlowMeter Software v1.12


WaterFlowMeter Feature Highlights

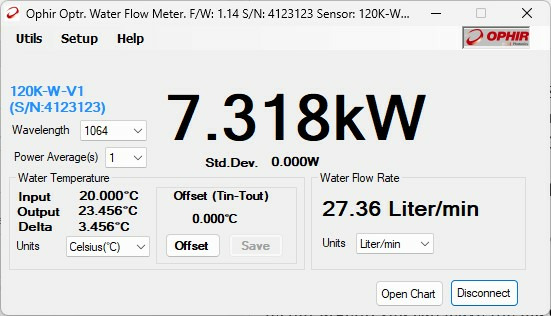

  • Power measurement based on water temperature and flow rate
  • Graphical or numeric presentation of measurements
  • Display of water flow rate and water temperature

Download Firmware Versions:
The firmware of the 6K-W & 120K-W sensors can be upgraded via WaterFlowMeter PC application. To download the firmware file go to: "Help/New Firmware" screen in WaterFlowMeter PC application.

Note: When running the WaterFlowMeter PC Application, the Water Flow Meters (6K-W & 120K-W) are connected directly to the PC via supplied RS232 cable. If you want to use the Water Flow Meter with an Ophir power meter or with an Ophir interface with StarLab, the sensor operates as a standard thermal sensor measuring power only.



Supported Devices RS232: 6K-W, 120K-W
Compatibility Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (32/64-bit)
Release Date 14-Dec-2023
