Compare Model Drawings, CAD & Specs Availability Price

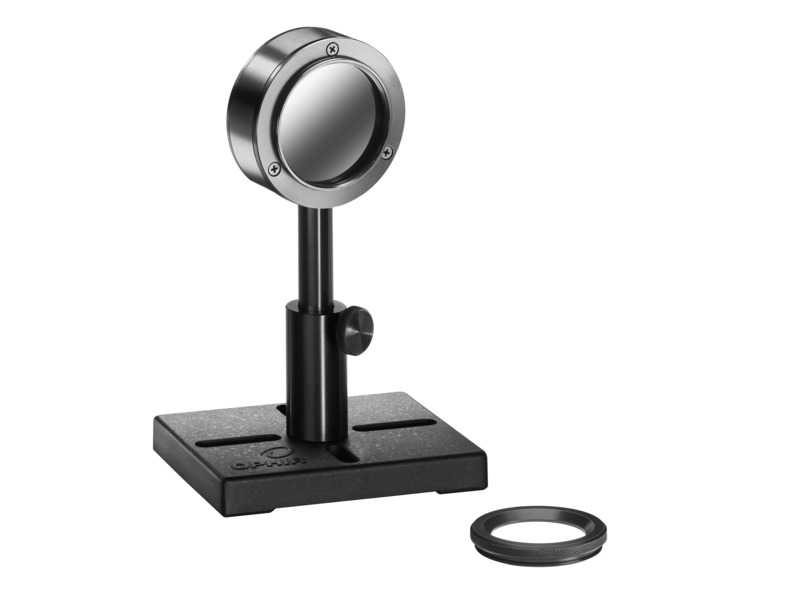

Pyroelectric Energy Sensor, BB/Diffuser, 100 µJ to 40 J, Ø33/46 mm, 400-2500 nm
PE50BB-DIF-C with 5m cable
Pyroelectric Energy Sensor, BB/Diffuser, 100 µJ to 40 J, Ø33/46 mm, 400-2500 nm with 5m cable

PE-C Sensors with StarLab

Support for PE-C \ PD10-C sensors with Vega, Nova II, Juno, Juno+, Juno-RS, EA-1, StarLite and StarBright in StarLab application is now available. Follow step-by-step instructions to upgrade the embedded software in the PE-C \ PD10-C sensor with the StarLab application

When working with other meters and interfaces it is not necessary to update the embedded software of the PE-C \ PD10-C.

Note: PE-C \ PD10-C sensors can't be upgraded via EA-1 interface..


  • Product Name
  • Aperture Size
    Ø46 mm
  • Aperture Size with Diffuser
    Ø33 mm
  • Absorber Type
  • Spectral Range
    0.19-20µm, 0.4-2.5µm with diffuser
  • Minimum Pulse Energy
    0.1 mJ
  • Maximum Pulse Energy
    40 J
  • Maximum Frequency
    40 Hz
  • Maximum Average Power
    10 W
  • Maximum Average Power Density
    10 W/cm²
  • Maximum Pulse Width
    20 ms
  • Damage Threshold (100 ns)
    0.3 J/cm²
  • Damage Threshold (2 ms)
    2 J/cm²
  • Diffuser
  • Cable Length
    1.5 m
  • Dimensions
    Ø62 x 29 mm
  • CE Compliance
  • UKCA Compliance
  • China RoHS Compliance


Measuring Laser Energy with a Pyroelectric Sensor

In this short “Basics” video, we review in general the use of pyro-electric sensors for measuring laser pulse energies.

Understanding Peak Power vs. Average Power

A pulsed laser could have an average power of, say, 1 Watt, yet a peak power of 1 Megawatt – so when specifying it’s rather important to understand the difference. In this video you will learn what exactly these 2 concepts mean. You’ll also learn how to measure Peak Power, which can sometimes be tricky.

Energy Sensor Response & Integration Time

There seems to be a good deal of confusion when it comes to the terms “Response time” and “Integration time” of energy sensors. In this video we will clarify the meaning of these terms, as they apply to Ophir’s pyro-electric “Smart Sensors”.

Laser Measurement Affected by Distance

Can a laser measurement depend on the distance from the laser to the sensor? The answer is…well, it’s not supposed to. But sometimes it does. In this video, you’ll learn what could make that happen - and what to do about it.
