Compare Model Drawings, CAD & Specs Availability Price

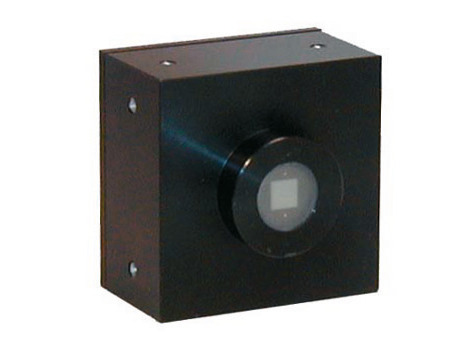

OEM Photodiode Power Sensor, 100 pW to 50 mW, 10x10 mm, 200-1100 nm


  • Product Name
  • Spectral Range
    200-1100 nm
  • Maximum Average Power
    up to 50 mW
  • Maximum Average Power Density
    ~ 50 W/cm²
  • Minimum Power
    100 pW
  • Response Time
    0.2 s
  • Communication
    RS232, Analog
  • Aperture Size
    10 x 10 mm
  • Dimensions
    38 x 38 x 32 mm (LxWxD)
  • RoHS Compliance
  • China RoHS Compliance


Cooling of OEM Sensors: Heat Sinking

Many of Ophir’s OEM power sensors have a maximum average power specification of “XX watts free standing, YY watts heat sinked.” In this video, you will learn some guidelines for making sure that a sensor has been provided with proper heat sinking so it does not get damaged.

OEM Laser Power Meter and Sensor

In this video, Jimmy Green, Ophir OEM Specialist, explains how Ophir can solve laser measurement challenges if a solution cannot be found from the hundreds of products in our catalog.

Clarifications: Range Selection, Measurement Duration

Sometimes, even experienced users of laser measurement equipment come across some issues that, although basic, need to be clarified. This video reviews 2 such issues: (1) selection of correct range when it's not quite obvious (and what happens if one goes over range), and (2) how long a measurement duration may be.
