Compare Model Drawings, CAD & Specs Availability Price

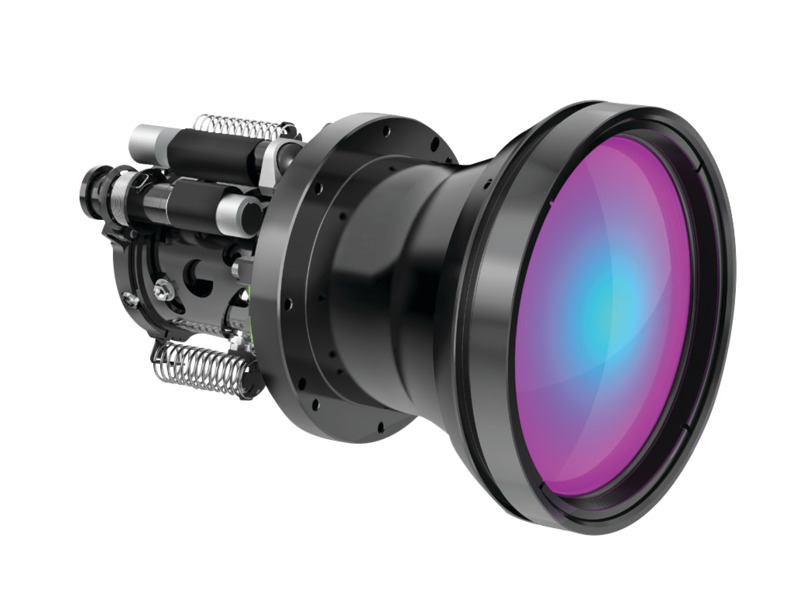

SupIR 30-385mm f/5.5
MWIR Continuous Zoom Lens, SupIR, 30-385 mm FL, f/5.5, High Durability
SupIR 30-385mm f/5.5
MWIR Continuous Zoom Lens, SupIR, 30-385 mm FL, f/5.5, Hard Carbon

WFOV (30 mm)

Pitch 640x512
15 µm 18.6°

NFOV (385 mm)

Pitch 640x512
15 µm 1.4°


  • Type
    Continuous Zoom
  • Focal Length
    30 to 385 mm
  • F/#
  • Spectral Range
    3.6-4.9 µm
  • Cold Stop FPA Distance
    19.7 mm
  • Cold Stop Clear Aperture
    Ø3.52 mm
  • Back Focal Length
    23.7 mm in air
  • Minimum Focus Range
    5 m Wide, 70 m Narrow
  • Nuc (by defocus)
  • Focus Mechanism
  • Focus Time
    ≤8 s
  • Zoom Mechanism
  • Zoom Time
    ≤5 s
  • Weight
    740 g
  • Dimensions
    Ø98 mm x 137.9 mm
  • Drive Voltage
    12 VDC
  • Current Consumption
    0.5 A average, 1.0 A peak at T= -32°C; 0.2 A average, 1.0 A peak at T 20°C
  • Communication Interface
    RS485, RS422
  • Operating Temperature Range
    -32°C to +70°C
  • Storage Temperature Range
    -40°C to +80°C
  • Sealing
    IP 67 front element only
  • Wavelength Region

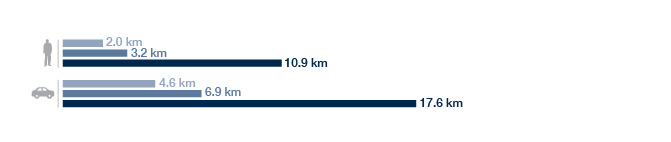

SupIR 30-385mm f/5.5 Detection, Recognition & Identification (DRI) Range

DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!

The calculations used here are based on the “Johnson Criteria”. According to the Johnson Criteria, the minimum resolution, pixels on target, required to achieve a 50% probability for an observer to discriminate an object are:

  • Detection: An object is present – 2 pixels on target (Lower Bar)
  • Recognition: discern the type of object, a human vs. a vehicle – 8 pixels on target (Middle Bar)
  • Identification: discern specific objects, a man vs. a woman, a car model – 12.8 pixels on target (Upper Bar)

Your Long Range Distance Needs Met

Long Range, High Performance

Our MWIR f/5.5 lenses enable longer detection, recognition, and identification (DRI) ranges with a compelling combination of performance, reliability and cost, specially designed for anti-drone applications and ideal for long range observation and surveillance systems with vehicle detection range capabilities exceeding 22 km.

Ruggedized Optical Design

These thermal imaging lenses are designed to withstand harsh environmental conditions with ease of mechanical integration. They are ruggedized with Ophir’s standard, world-renowned coatings, IP 67 front sealing, and mechanical design to withstand severe shock and vibration.

Superior Zoom Controller

These lenses are equipped with Ophir’s state-of-the-art zoom controller features:

  • Continuous zoom with focus retention
  • Automatic focus compensation throughout temperature and zoom ranges
  • Close objects focus mode
  • Focus blurring for NUC calculation
  • Full manual / automatic control of zoom and focus positions

Optimal Integration and Calibration

For optimal integration and calibration, these lenses are operated with Ophir’s standard OphirSim™ software which includes:

  • Lens operation testing and evaluation
  • Protocol simulation
  • Lens customer calibration
  • Autofocus calibration

High Performance Mid-Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

  • Physical Vapor Deposition (PVD) – Thermal heating and electron gun
  • Ion Assisted Deposition (IAD) – Ion gun
  • Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings
