7Z02776
L300W-LP2-50

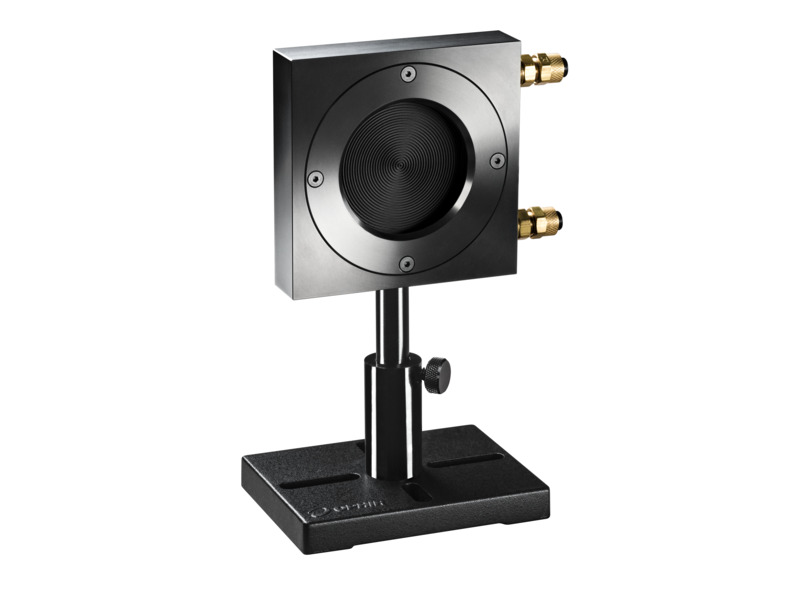

Thermal Laser Power Sensor, LP2 Type, 0.5-300 W, Ø50 mm, 350-2200 nm/10.6 µm, Water-Cooled
$2,183

Specifications

  • Product Name
    L300W-LP2-50
  • Absorber Type
    LP2 - Long pulse and CW high damage threshold
  • Aperture Size
    Ø50 mm
  • Spectral Range
    350 to 2200 nm and 10.6 µm
  • Minimum Power
    500 mW
  • Maximum Average Power
    300 W
  • Minimum Pulse Energy
    200 mJ
  • Maximum Pulse Energy
    300 J
  • Response Time
    2.5 s
  • Maximum Average Power Density
    12 kW/cm²
  • Maximum Energy Density <100 ns
    0.07 J/cm²
  • Maximum Energy Density 2 ms
    90 J/cm²
  • Cooling
    Water
  • Dimensions
    90 x 90 x 20 mm (LxWxD)
  • Cable Length
    1.5 m
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes

Features

LP2 Sensors Coating With Very High Damage Threshold and Very Low Reflection

Even higher damage threshold…flat spectral response…absorption up to 96%... These are some of the characteristics of the new “LP2” type laser power sensors from Ophir.

Choosing a Thermal Sensor

In this short “Basics” video we review the use – and selection - of thermal sensors for measuring low, medium and high laser powers.

Sensors for Measuring Laser Power

In this short "Basics" video we review in general how one goes about measuring laser beam power, so that you'll have a clear understanding of what the different sensor types are, and when to use each type.

Thermal Power Sensor Accuracy

Ophir former CTO Dr. Ephraim Greenfield discusses the various factors that contribute to uncertainties in measurement when using Ophir laser power and energy meters.

Thermal Sensor Calibration

As the spectral sensitivity of the absorber used for the power and energy measurement is not fully linear, Ophir sensors get a high precision calibration by default with more than one wavelength.

Each thermal sensor is calibrated independently of a particular Ophir power meter with its calibration information contained in the DB15 plug. When the sensor is connected to the meter, the meter reads and interprets this information to display a calibrated reading. Each power meter is calibrated independently and has the same sensitivity as an other meter within about 2 tenths of a percent.

Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Absorption of different thermal sensor absorber types
