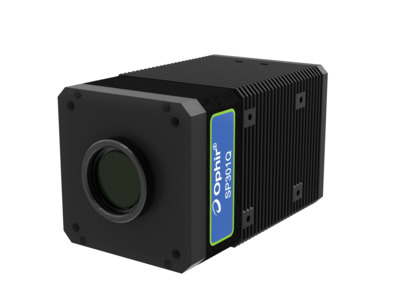

SP301Q CQD CMOS GigE 640x512 400-1700 nm Laser Beam Profiler with BeamGage Professional Software

Specifications

Technical Specs

Product Name
SP301Q
Spectral Range
400-1700 nm
Beam Size
150 μm - 7.7 mm
Communication Interface
GigE
Sensor Type
CQD
Compatible Light Sources
CW, Pulsed
Active Area
9.6 X 7.7 mm
Sensor Recess
12.5mm
Elements
640 x 512
Effective Pixel Pitch
15 μm

Dynamic Range
55 dB
Full Resolution Frame Rate
60 fps
Saturation Intensity
0.3mW/cm²
Software
BeamGage Professional
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Product Name
SP301Q
Spectral Range
400-1700 nm
Beam Size
150 μm - 7.7 mm
Communication Interface
GigE
Sensor Type
CQD
Compatible Light Sources
CW, Pulsed
Active Area
9.6 X 7.7 mm
Sensor Recess
12.5mm
Elements
640 x 512
Effective Pixel Pitch
15 μm

Dynamic Range
55 dB
Full Resolution Frame Rate
60 fps
Saturation Intensity
0.3mW/cm²
Software
BeamGage Professional
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes
