Compare Model Drawings, CAD & Specs Availability Price

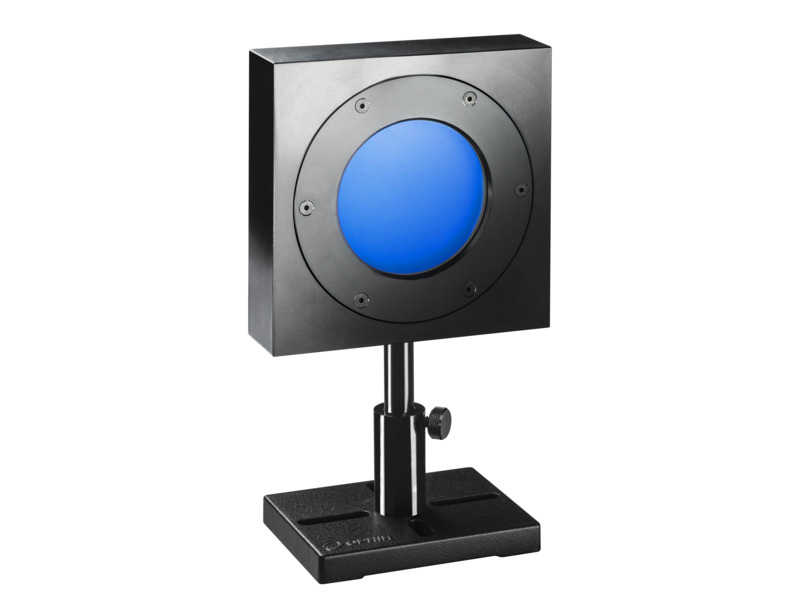

Intense Pulsed Light Sensor, LP2, 120 mJ to 1,000 J, Ø65 mm, 500-1300 nm
In Stock
In Stock


  • Product Name
  • Aperture Size
    Ø65 mm
  • Absorber Type
    LP2 + coated window
  • Spectral Range
    500 to 1300 nm
  • Minimum Pulse Energy
    120 mJ
  • Maximum Pulse Energy
    1,000 J
  • Maximum Average Power
    300 W
  • Maximum Average Power Density
    17 kW/cm²
  • Maximum Pulse Width
    3 s
  • Damage Threshold (100 ns)
    0.1 J/cm²
  • Damage Threshold (2 ms)
    130 J/cm²
  • Cable Length
    1.5 m
  • Dimensions
    120 x 120 x 30 mm (LxWxD)
  • CE Compliance
  • UKCA Compliance
  • China RoHS Compliance


Choosing a Thermal Sensor

In this short “Basics” video we review the use – and selection - of thermal sensors for measuring low, medium and high laser powers.

Sensors for Measuring Laser Power

In this short "Basics" video we review in general how one goes about measuring laser beam power, so that you'll have a clear understanding of what the different sensor types are, and when to use each type.

Thermal Power Sensor Accuracy

Ophir former CTO Dr. Ephraim Greenfield discusses the various factors that contribute to uncertainties in measurement when using Ophir laser power and energy meters.

Effects of Incidence Angle on Measurements

In this video, you will learn to what degree a beam’s incidence angle matters, and for which sensor types this should be taken into account.
