7Z02424

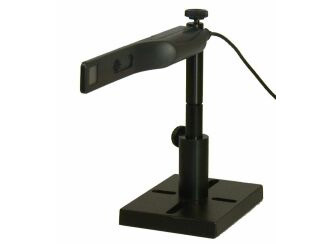

PD300-TP
Photodiode Power Sensor, Silicon, 50 pW to 1 W, 10x10 mm, 350-1100 nm, Thin Profile
$795
In Stock
In Stock

Specifications

  • Aperture Size
    10 x 10 mm
  • Material
    Silicon
  • Spectral Range
    Filter in: 400-1100 nm
    Filter out: 350-1100 nm
  • Power Range
    Filter in: 2 µW - 1 W
    Filter out: 50 pW - 3 mW
  • Maximum Average Power Density
    Filter in: 50 W/cm²
    Filter out: 10 W/cm²
  • Maximum Pulse Energy
    Filter in: 100 µJ
    Filter out: 1 µJ
  • Response Time
    0.2 s
  • Cable Length
    1.5 m
  • Dimensions
    175 x 21 x 19 mm (LxWxD)
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes

Features

Measuring Very Low Laser Powers with a Photodiode Sensor

In this short “Basics” video, we review in general the use of photodiode sensors for measuring very low laser powers.

Effects of Incidence Angle on Measurements

In this video, you will learn to what degree a beam’s incidence angle matters, and for which sensor types this should be taken into account.
