Compare Model Drawings, CAD & Specs Availability Price
7Z02495

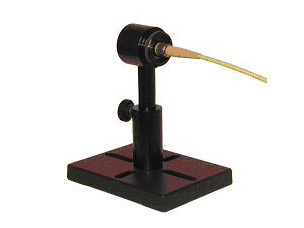

PD300-IRG

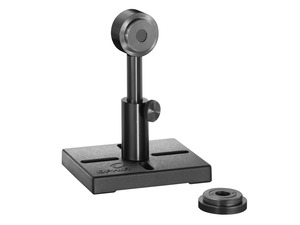

Photodiode Power Sensor, InGaAs, 20 pW to 200 mW, Ø5 mm, 900-1630 nm, Round
$2,964
5 Weeks
5 Weeks

Specifications

  • Aperture Size
    Ø5 mm
  • Material
    InGaAs
  • Spectral Range
    Filter in: 950-1630 nm
    Filter out: 900-1630 nm
  • Power Range
    Filter in: 1 µW - 200 mW
    Filter out: 20 pW - 800 µW
  • Maximum Average Power
    Filter in: 50 W/cm²
    Filter out: 5 W/cm²
  • Minimum Pulse Energy
    Filter in: 100 µJ
    Filter out: 1 µJ
  • Response Time
    0.2 s
  • Cable Length
    1.5 m
  • Dimensions
    Ø30 x 29 mm
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes

Features

Measuring Very Low Laser Powers with a Photodiode Sensor

In this short “Basics” video, we review in general the use of photodiode sensors for measuring very low laser powers.

How to Measure Laser Power in Telecom Applications

Optical laser measurements in telecom applications have unique challenges. This video will introduce you to the solutions Ophir offers to help you.
