7Z02476
IS6-C-IR

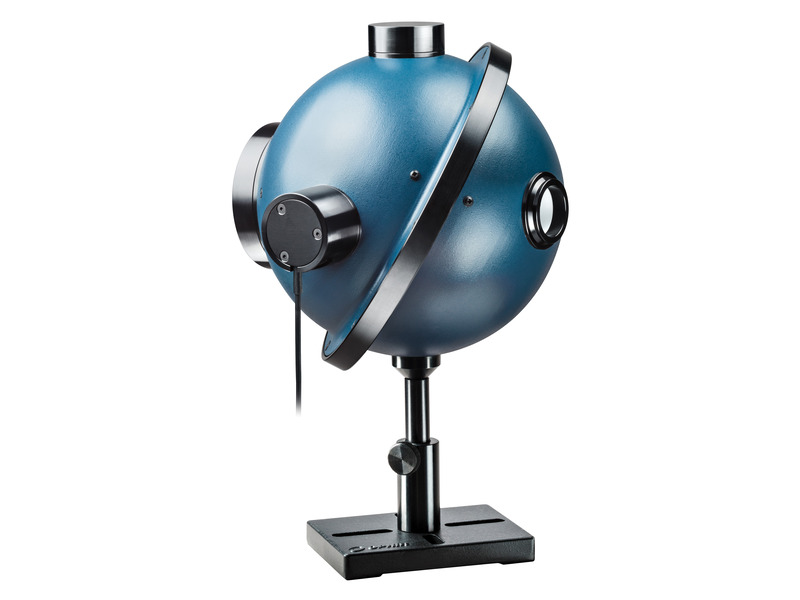

Integrating Sphere, Collimated, Germanium, 5.3 in. ID, 20 μW to 30 W, Ø25 mm, 700-1800 nm
$4,286
7 Weeks
7 Weeks

Specifications

  • Product Name
    IS6-C-IR
  • Type
    Collimated Beam
  • Sphere Size
    5.3 inch Inner Diameter
  • Aperture Size
    Ø25 mm
  • Detector Type
    Germanium
  • Spectral Range
    700 to 1800 nm
  • Minimum Power
    20 µW
  • Maximum Average Power
    30 W
  • Maximum Pulse Energy
    0.3 mJ
  • Maximum Average Power Density
    1 kW/cm²
  • Beam Size Sensitivity
    ±1%
  • Maximum Beam Divergence
    ±15 deg
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes

Features

IS6 Integrating Sphere Overview

For applications that need a large Integrating Sphere, Ophir offers the IS6 series. These are 6” Integrating Spheres, available with and without built-in calibrated sensors, in a range of configurations. Get to know the IS6 family in this video.

Measuring Beams Coming Out of A Fiber

When you need to measure a beam coming out of a fiber, there are some parameters that might have a somewhat different meaning than they do when referring to "regular" beam measurements. Missing some of these points could lead to incorrect measurement, and possible equipment damage. This video clarifies some issues you'll need to keep in mind so you can set up -- and perform -- this measurement correctly.

Measuring Power of LEDs: UV, Visible and NIR

Measuring the emitted power of an LED can be tricky. It is different in some important ways from measuring the power of a laser beam. This video shows you how to use the Ophir 3A-IS Integrating Sphere Sensor, along with the Auxiliary LED accessory, to easily make accurate measurements in LED applications.

Calibration Factors - Laser Power/Energy Meter

When a power/energy meter is in "Calibrate" mode, various "Factors" are displayed to the user. This video explains the meaning of each of these factors.

IS6 Integrating Sphere Selection Guide

200-1100 nm
300nw-1W
400-1100 nm
20µW-30W
700-1800 nm
20µW-30W
Collimated beam < ±15°
Beam diameter < 25mm
IS6-C-UV IS6-C-VIS IS6-C-IR
Collimated beam < ±30°
Beam diameter > 25mm
IS6-C-UV-2.5’’
Divergent beam > ±15°
Max divergence < ±40°
Beam diameter < 25mm
IS6-D-UV IS6-D-VIS IS6-D-IR
Divergent beam > ±15°
Max divergence < ±56°
Beam diameter < 10mm
Divergent beam > ±15°
Max divergence < ±60°
Beam diameter < 5mm
Highly divergent beam <±85°
Beam diameter < 8mm
IS6-D-IR-170
