7Z02508
FPD-IG-25
High Speed Optical Detector, InGaAs, 0.025 ns, Ø0.032 mm, 900-1700 nm
$1,546
In Stock
In Stock

Specifications

  • Product Name
    FPD-IG-25
  • Sensor Type
    InGaAs
  • Rise Time/Fall Time
    <25 ps
  • Spectral Range
    900-1700 nm
  • Active Area Diameter
    0.032 mm
  • Noise Equivalent Power
    20 pW/√Hz
  • Detector Area
    0.00080 mm²
  • Wavelength of Peak Sensitivity
    1500 nm
  • Responsivity at Peak Wavelength
    0.95 A/W
  • Responsivity (Irradiance) at Peak Wavelength
    0.19 x 10⁻³ V/(W/cm²)
  • Bias Voltage
    6 VDC
  • Bias Voltage Source
    Batteries
  • Bandwidth
    >15 GHz
  • Dark Current
    <3 nA
  • Maximum Average Power
    10 mW
  • Mounting (Tapped Holes)
    8-32 & M4
  • Output Connector
    SMA
  • Accessory Thread
    M20x1
  • Dimensions
    54 x 34 x 40 mm (LxWxD)
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes

Features

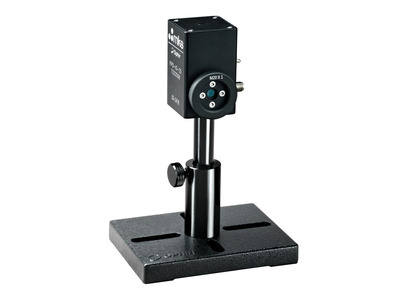

Pulse Characterization Sensor Overview

Using these Ophir fast photodetectors, you can see and measure the temporal characteristics of pulsed and CW laser beams.

Fast Photodiode Spectral Responsivity

Responsivity is defined as the produced photocurrent (in Amperes) per Watt of incident radiation. It is a function of wavelength. Hence, the spectral response of the photodiode should be as high as possible at the wavelength of the laser to be measured. The spectral responsivities of the FPD series are shown in the figure. Ophir offers several fast photodiodes models with Silicon photodiodes having spectral response from 320 nm to 1100 nm, UV enhanced Silicon with extended response from 193 nm to 1100 nm, and InGaAs photodiodes which are sensitive from 900 nm to 1700 nm.
