Power Sensor Fiber Adapter Mounting Bracket

Compare	Model	Compatibility	rankScore		Aperture Size	Use	Availability	Price	Brand
1G02259 Fiber Adapter Mounting Bracket, PD300R/FPS-1 Photodiode Sensors $133 In Stock	1G02259 Fiber Adapter Mounting Bracket, PD300R/FPS-1 Photodiode Sensors	UNIVERSAL	1.0	1.0	5-10 mm	PD300R, FPS-1	In Stock	$133	Ophir

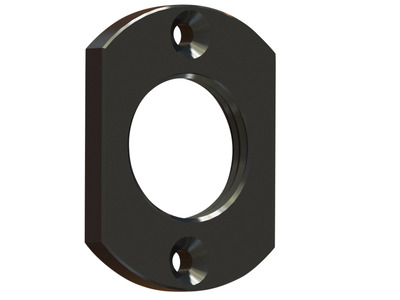

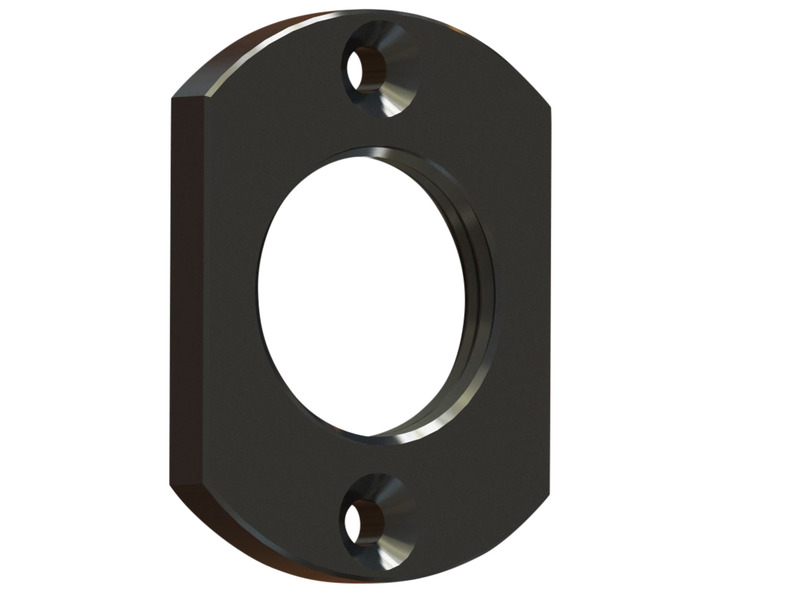

7Z08213 Fiber Adapter Mounting Bracket, 3A-IS Photodiode Sensors $125 In Stock	7Z08213 Fiber Adapter Mounting Bracket, 3A-IS Photodiode Sensors	UNIVERSAL	1.0	2.0	12 mm	3A-IS, 3A-IS-IRG	In Stock	$125	Ophir
7Z08331 Fiber Adapter Mounting Bracket, IS-1-2W Integrating Sphere Sensors $133 In Stock	7Z08331 Fiber Adapter Mounting Bracket, IS-1-2W Integrating Sphere Sensors	UNIVERSAL	1.0	3.0		IS-1-2W	In Stock	$133	Ophir

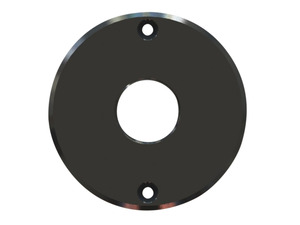

7Z08230 Fiber Adapter Mounting Bracket, 30 P/SV/HE Thermal Sensors $142 In Stock	7Z08230 Fiber Adapter Mounting Bracket, 30 P/SV/HE Thermal Sensors	UNIVERSAL	1.0	4.0	17 mm	30A-P-17, 30(150)A-SV-17, 30(150)A-HE-17	In Stock	$142	Ophir
7Z08211 Fiber Adapter Mounting Bracket, 30 BB/LP2/N Thermal Sensors $112 In Stock	7Z08211 Fiber Adapter Mounting Bracket, 30 BB/LP2/N Thermal Sensors	UNIVERSAL	1.0	5.0	18 mm	30A-BB-18, 30A-N-18, 30(150)A-BB-18, 30(150)A-LP2-18, F50A-BB-18	In Stock	$112	Ophir

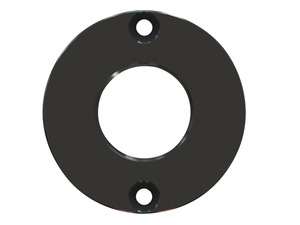

7Z08210 Fiber Adapter Mounting Bracket, 50(150)/F150 Thermal Sensors $97 In Stock	7Z08210 Fiber Adapter Mounting Bracket, 50(150)/F150 Thermal Sensors	UNIVERSAL	1.0	6.0	26 mm	50(150)A-BB-26, 50(150)A-BB-26-PPS, 50(150)A-BB-26-QUAD, F150A-BB-26, F150A-BB-26-PPS	In Stock	$97	Ophir

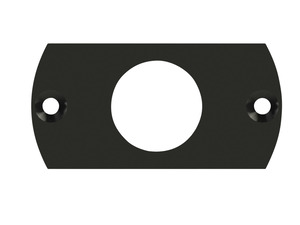

7Z08265 Fiber Adapter Mounting Bracket, L50/FL250 Thermal Sensors $142 In Stock	7Z08265 Fiber Adapter Mounting Bracket, L50/FL250 Thermal Sensors	UNIVERSAL	1.0	7.0	35 mm	L50(150)A-BB-35, L50(150)A-LP2-35, L50(150)A-PF-35, FL250A-BB-35, FL250A-LP2-35	In Stock	$142	Ophir

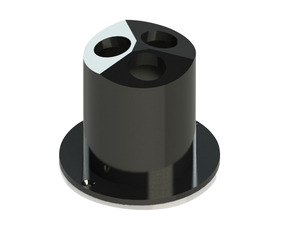

7Z08238 Fiber Adapter Mounting Bracket, L40(150)/L50(150) Thermal Sensors $709 In Stock	7Z08238 Fiber Adapter Mounting Bracket, L40(150)/L50(150) Thermal Sensors	UNIVERSAL	1.0	8.0	50 mm	L40(250)A-BB-50, L40(250)A-LP2-50, L50(250)A-BB-50	In Stock	$709	Ophir

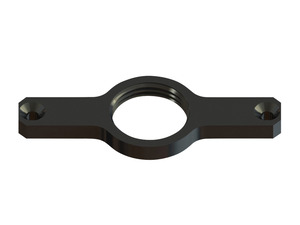

7Z08212 Fiber Adapter Mounting Bracket, FL250/FL400 Thermal Sensors $142 In Stock	7Z08212 Fiber Adapter Mounting Bracket, FL250/FL400 Thermal Sensors	UNIVERSAL	1.0	9.0	50 mm	FL250A-BB-50, FL250A-BB-50-PPS, FL400A-BB-50, FL400A-LP2-50	In Stock	$142	Ophir

Show All

Compatibility

A mounting bracket may be needed to mount fibers to sensors. See the compatibility table below to select an adapter bracket and fiber adapter for your sensor.

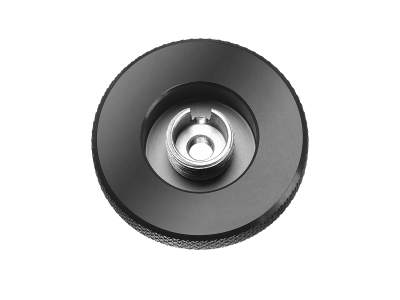

Photodiode Power Sensor Series	SC Adapter	ST Adapter	FC, FC/APC Adapter	SMA Adapter	Fiber Adapter Mounting Bracket
PD300R Series	7Z08227	7Z08226	7Z08229	1G01236A	1G02259
FPD Series					not needed
FPS-1					1G02259
3A-IS / 3A-IS-IRG					7Z08213
IS-1-2W					7Z08331
PD300-IRG	N.A.	N.A.	7Z08216	7Z08222	not needed
Thermal Power Sensor Series	SC Adapter	ST Adapter	FC, FC/APC Adapter	SMA Adapter	Fiber Adapter Mounting Bracket
2A-BB-9 / 3A / 3A-QUAD / 3A-P / 3A-P-QUAD / 3A-PF-12 / 3A-FS / 3A-P-THz	7Z08227	7Z08226	7Z08229	1G01236A	not needed
10A / 10A-PPS / 10A-P					not needed
12A / 12A-P					not needed
30A-BB-18 / 30A-N-18 / 30(150)A-BB-18 / 30(150)A-LP2-18 / F50A-BB-18					7Z08211
50(150)A-BB-26 / 50(150)A-BB-26-PPS / 50(150)A-BB-26-QUAD / F150A-BB-26 / F150A-BB-26-PPS					7Z08210
L50(150)A-BB-35 / L50(150)A-LP2-35 / L50(150)A-PF-35 / FL250A-BB-35 / FL250A-LP2-35					7Z08265
30A-P-17 / 30(150)A-SV-17 / 30(150)A-HE-17					7Z08230
L40(250)A-BB-50 / L40(250)A-LP2-50 / L50(250)A-BB-50					7Z08238
FL250A-BB-50 / FL250A-BB-50-PPS / FL400A-BB-50 / FL400A-LP2-50					7Z08212
L100(500)A-PF-120 / FL600A-BB-65 / FL600A-LP2-65 / 1000WP-BB-34 / 1000W-BB-34 / 1000W-BB-34-QUAD / 1000W-LP2-34 / FL1100A-BB-65 / FL1100A-LP2-65 / L1500W-BB-50 / L1500W-LP2-50 / L2000W-BB-120 / L2000W-PF-120 / 5000W-BB-50 / 5000W-LP2-50 / 5000WP-LP2-50	Consult Ophir representative				Threaded holes exist

Compatibility

A mounting bracket may be needed to mount fibers to sensors. See the compatibility table below to select an adapter bracket and fiber adapter for your sensor.

Photodiode Power Sensor Series	SC Adapter	ST Adapter	FC, FC/APC Adapter	SMA Adapter	Fiber Adapter Mounting Bracket
PD300R Series	7Z08227	7Z08226	7Z08229	1G01236A	1G02259
FPD Series					not needed
FPS-1					1G02259
3A-IS / 3A-IS-IRG					7Z08213
IS-1-2W					7Z08331
PD300-IRG	N.A.	N.A.	7Z08216	7Z08222	not needed
Thermal Power Sensor Series	SC Adapter	ST Adapter	FC, FC/APC Adapter	SMA Adapter	Fiber Adapter Mounting Bracket
2A-BB-9 / 3A / 3A-QUAD / 3A-P / 3A-P-QUAD / 3A-PF-12 / 3A-FS / 3A-P-THz	7Z08227	7Z08226	7Z08229	1G01236A	not needed
10A / 10A-PPS / 10A-P					not needed
12A / 12A-P					not needed
30A-BB-18 / 30A-N-18 / 30(150)A-BB-18 / 30(150)A-LP2-18 / F50A-BB-18					7Z08211
50(150)A-BB-26 / 50(150)A-BB-26-PPS / 50(150)A-BB-26-QUAD / F150A-BB-26 / F150A-BB-26-PPS					7Z08210
L50(150)A-BB-35 / L50(150)A-LP2-35 / L50(150)A-PF-35 / FL250A-BB-35 / FL250A-LP2-35					7Z08265
30A-P-17 / 30(150)A-SV-17 / 30(150)A-HE-17					7Z08230
L40(250)A-BB-50 / L40(250)A-LP2-50 / L50(250)A-BB-50					7Z08238
FL250A-BB-50 / FL250A-BB-50-PPS / FL400A-BB-50 / FL400A-LP2-50					7Z08212
L100(500)A-PF-120 / FL600A-BB-65 / FL600A-LP2-65 / 1000WP-BB-34 / 1000W-BB-34 / 1000W-BB-34-QUAD / 1000W-LP2-34 / FL1100A-BB-65 / FL1100A-LP2-65 / L1500W-BB-50 / L1500W-LP2-50 / L2000W-BB-120 / L2000W-PF-120 / 5000W-BB-50 / 5000W-LP2-50 / 5000WP-LP2-50	Consult Ophir representative				Threaded holes exist

Features

Measuring beams coming out of a fiber

When you need to measure a beam coming out of a fiber, there are some parameters that might have a somewhat different meaning than they do when referring to "regular" beam measurements. Missing some of these points could lead to incorrect measurement, and possible equipment damage. This video clarifies some issues you'll need to keep in mind so you can set up and perform this measurement correctly.

Features

Measuring beams coming out of a fiber

Frequently Asked Questions

Do the fast photodiode detectors (FPD & FPS-1) have attenuators and fiber adapters available for them?
Answer
Yes, there are a variety of accessories such as attenuators and fiber adapters available for the FPD & FPS-1 Fast Photodiode Detectors. Fast Photodiode Detectors are used for displaying temporal pulse shape on an oscilloscope. Please note that in order to mount these accessories to the FPS-1 you will need the SM1-to-M20 adapter 1G02259. This is mentioned in the catalog spec page but is sometimes missed. No adapter is needed for FPD models.

Can the PD300 be used with the filter in and with fiber adapter at the same time?
Answer
Yes, the adapter is arranged so the user can use it either with filter out or in.

When using the fiber optic adaptor, how do we handle power loss due to the fiber relative to calibration?
Answer
All Ophir power meters, including photodiode power meters, have an air gap between the fiber tip and the sensor. Therefore they measure the power emitted by the fiber into the air and do not take into account any reflection losses there are in the fiber. Therefore, if in actual use, the fiber will be coupled with no loss to another element, then the losses should be added to the reading. These losses are usually about 4%. Thus if the reading on the Ophir meter is say 100 mW, then in lossless use, the real power will be 104 mW.

To connect a fiber to an Ophir sensor, why do I need 2 items – an “Adapter” and a “Mounting Bracket”
Answer
The idea is used with most (though not all) sensors; the fiber optic connectors are standard (such as FC, SMA, etc.), but the sensors are all different in their mechanics, so we use the standard FO connectors but provide in addition mounting brackets for connecting the FO connectors to the various sensors.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Frequently Asked Questions

Do the fast photodiode detectors (FPD & FPS-1) have attenuators and fiber adapters available for them?
Answer
Yes, there are a variety of accessories such as attenuators and fiber adapters available for the FPD & FPS-1 Fast Photodiode Detectors. Fast Photodiode Detectors are used for displaying temporal pulse shape on an oscilloscope. Please note that in order to mount these accessories to the FPS-1 you will need the SM1-to-M20 adapter 1G02259. This is mentioned in the catalog spec page but is sometimes missed. No adapter is needed for FPD models.

Can the PD300 be used with the filter in and with fiber adapter at the same time?
Answer
Yes, the adapter is arranged so the user can use it either with filter out or in.

When using the fiber optic adaptor, how do we handle power loss due to the fiber relative to calibration?
Answer
All Ophir power meters, including photodiode power meters, have an air gap between the fiber tip and the sensor. Therefore they measure the power emitted by the fiber into the air and do not take into account any reflection losses there are in the fiber. Therefore, if in actual use, the fiber will be coupled with no loss to another element, then the losses should be added to the reading. These losses are usually about 4%. Thus if the reading on the Ophir meter is say 100 mW, then in lossless use, the real power will be 104 mW.

To connect a fiber to an Ophir sensor, why do I need 2 items – an “Adapter” and a “Mounting Bracket”
Answer
The idea is used with most (though not all) sensors; the fiber optic connectors are standard (such as FC, SMA, etc.), but the sensors are all different in their mechanics, so we use the standard FO connectors but provide in addition mounting brackets for connecting the FO connectors to the various sensors.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.
