Compare Model Drawings, CAD & Specs Availability Price

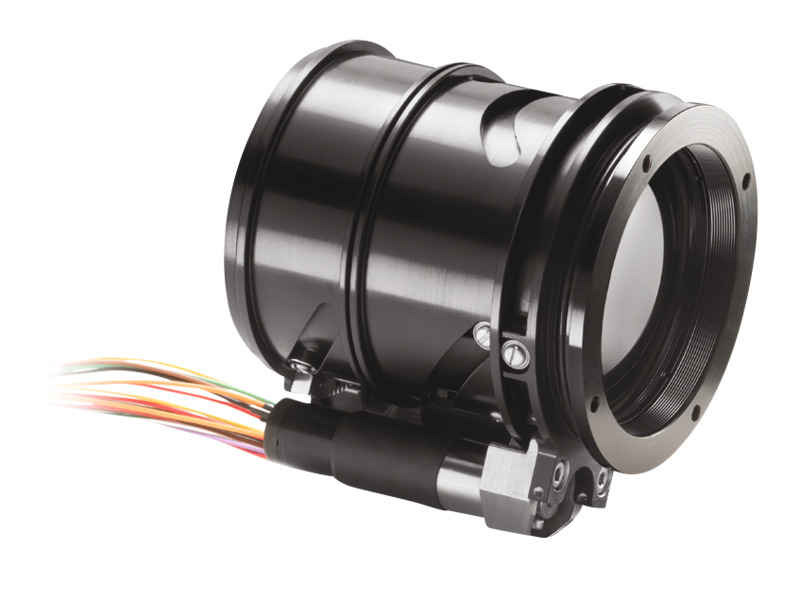

SupIR 15-60mm f/1.4
LWIR Motorized Continuous Zoom Lens, SupIR, 15-60 mm FL, f/1.4, High Durability
SupIR 15-60mm f/1.4
LWIR Motorized Continuous Zoom Lens, SupIR, 15-60 mm FL, f/1.4, Low Reflection Hard Carbon

HFOV [deg]

WFOV (15 mm)

Pitch 320x240 640x480
25 µm 31.5°
17 µm 21.1° 44.2°
12 µm 14.8° 30.2°

NFOV (60 mm)

Pitch 320x240 640x480
25 µm 7.6°
17 µm 5.2° 10.4°
12 µm 3.7° 7.3°


  • Type
    Continuous Zoom
  • Focal Length
    15-60 mm
  • F/#
  • Spectral Range
    8-12 μm
  • Back Focal Length
    ≥25 mm in air
  • HD Format
  • Minimum Focus Range
    1 m Wide, 2 m Narrow
  • Nuc (by defocus)
  • Focus Mechanism
  • Focus Time
    ≤4 s
  • Zoom Mechanism
  • Zoom Time
    ≤4 s
  • Weight
    500 g
  • Dimensions
    Length: 80 mm; Height: 89 mm; OD: Ø62 x 83.5 mm
  • Operating Temperature Range
    -32°C to +80°C
  • Storage Temperature Range
    -45ºC to +85ºC
  • Sealing
    IP 67 front element only
  • Drive Voltage
    6-12 VDC
  • Current Consumption
    0.2 A average, 0.5 A peak
  • Communication Interface
  • Wavelength Region


High Performance Long Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

  • Physical Vapor Deposition (PVD) – Thermal heating and electron gun
  • Ion Assisted Deposition (IAD) – Ion gun
  • Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
