Beam Expanding Microscope Objective, 6X, 4.5 mm Recess & CS-mount Cameras

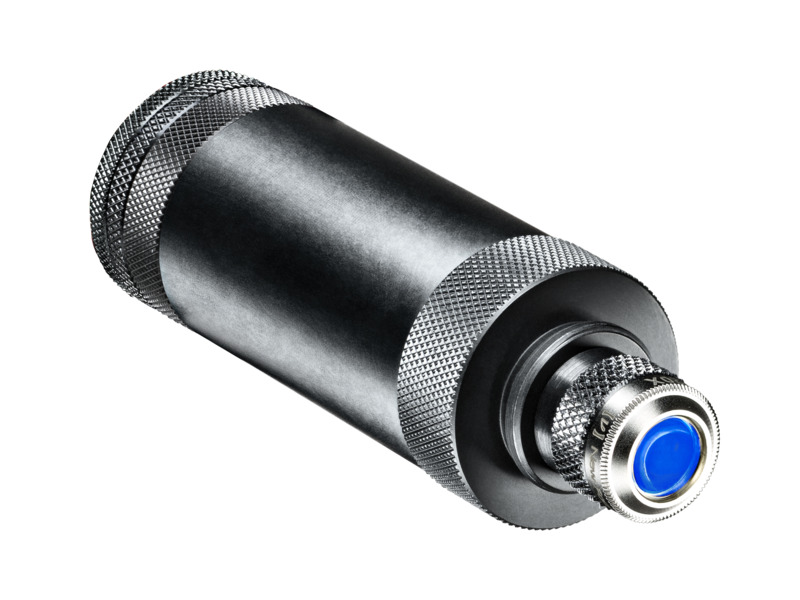

6X expanding microscope objective
Model: SPZ08257
In Stock
Product Series Overview
Microscope Objectives for Beam ProfilersBeam Expanding Microscope Objective, 6X, 4.5 mm Recess & CS-mount Cameras
The SPZ08257 microscope objective is used for 6X expanding the a beam. The various expanders allow the use of our ND1, ND2 and ND3 filters as well as the variable attenuator so as to accommodate the camera to a wide range of source intensities.
Specifications
- InterfaceC-mount
- Expansion Ratio6X
- Assembly Length107 mm
- Spectral Range530-1100 nm
- InterfaceC-mount
- Expansion Ratio6X
- Assembly Length107 mm
- Spectral Range530-1100 nm
Resources & Downloads
Data Sheets
Beam Expanders Datasheet(364 kB, PDF)
Technical Notes
6x 12x 22x Expanding Microscope Objectives(420.2 kB, PDF)
