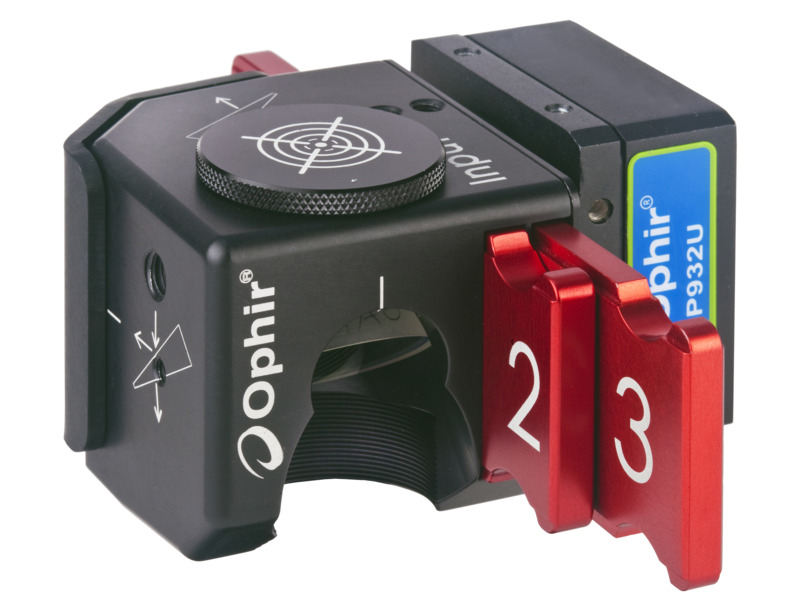

The FSA-UV-SP932U focal spot analyzer (P/N SP90614) measures laser beam power distribution and focal spot size for wavelengths from 300 to 400 nm. The power ranges from <1 to 400 Watts and the focal spot can be as small as 34.5 µm. The FSA can also be used to measure how the focal spot shifts with power during its critical start-up phase. BeamGage Professional software is included.

Specifications

Technical Specs

Spectral Range
300-400 nm
Beam Size
34.5 µm - 5.3 mm
Communication
USB 3.0
Sensor Type
Silicon CMOS
Compatible Light Sources
CW, Pulsed
Active Area
7.06 X 5.3 mm
Elements
2048 x 1536
Dynamic Range
72 dB

Full Resolution Frame Rate
24 fps
Software
BeamGage Professional
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Spectral Range
300-400 nm
Beam Size
34.5 µm - 5.3 mm
Communication
USB 3.0
Sensor Type
Silicon CMOS
Compatible Light Sources
CW, Pulsed
Active Area
7.06 X 5.3 mm
Elements
2048 x 1536
Dynamic Range
72 dB

Full Resolution Frame Rate
24 fps
Software
BeamGage Professional
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes
