Front-Surface Beam Sampler, Single Prism, C-mount
PFSA
Model: PH00052
In Stock
Product Series Overview
Stackable Prism Front-Surface Beam SamplersFront-Surface Beam Sampler, Single Prism, C-mount

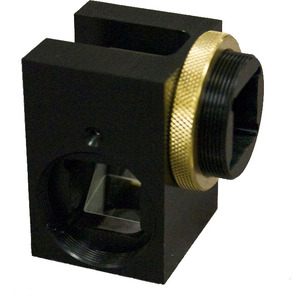

The PH00052 prism front-surface beam sampler (PFSA) is a C-mount fixture housing a UV-Grade Fused Silica right angle prism, used for sampling the front surface reflection for high power/energy beam-profiling applications. Reflection at nominal incidence of 45°is polarization and wavelength dependent, with 532nm s-polarization reflected at 8.27%, and p-polarization at 0.68%.
Specifications
- Spectral Range200-2500 nm
- Angle of Incidence45°
- ReflectionP: 0.64-0.88%, S: 8.01-9.40%
- Damage Threshold100 MW/cm² CW
- Surface Accuracyλ/10
- Surface Quality20-10 Scratch-Dig
- MaterialUV-Grade Fused Silica
- Clear Aperture14x14 mm
- InterfaceC-mount
