OEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-11 µm, Water-Coooled, Ethernet
L300W-UAE
Model: L300W-UAE
Product Series Overview
300 mW to 600 W OEM Thermopile Laser Power SensorsOEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-11 µm, Water-Coooled, Ethernet

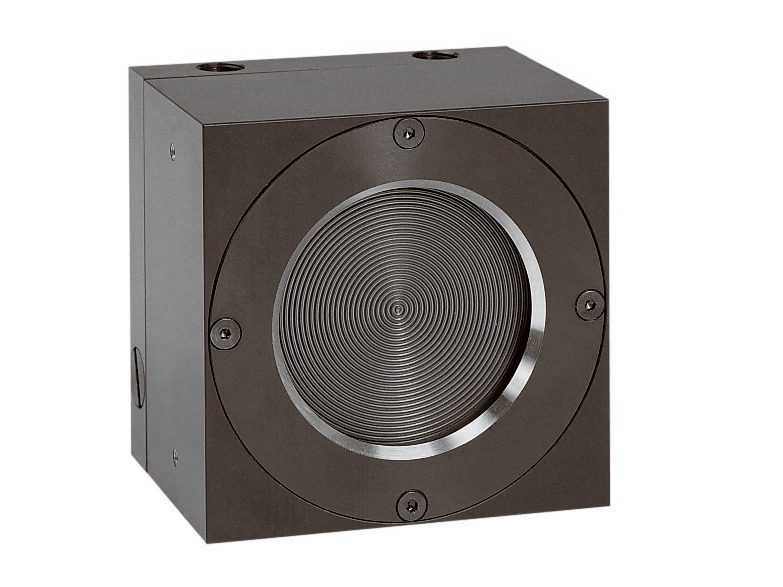

The L300W-UAE OEM thermal power and energy sensor is water-cooled with a 50 mm aperture. It can measure laser power from 500 mW to 300 W. It can measure energy from 200 mJ to 300 J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 11 µm.. It has Ethernet output.
Specifications
- Spectral Range0.19-11 µm
- Maximum Average Power300 W water cooled free standing
- Maximum Average Power Density9 kW/cm² at 300 W
- Minimum Power500 mW
- Maximum Pulse Energy300 J
- Maximum Energy Density (7ns)0.3 J/cm²
- Maximum Energy Density (2ms)10 J/cm²
- Minimum Pulse Energy200 mJ
- Response Time2.5 s
- CommunicationEthernet
- Aperture SizeØ50 mm
- Dimensions80 x 80 x 58 mm (LxWxD)
- RoHS ComplianceYes
- China RoHS ComplianceYes
Resources & Downloads
3D Product Models
Data Sheets
Drawings & CAD
L250W-UAE & L300W-UAE Drawing(168.7 kB, PDF)
