Short Exposure Laser Power Sensor, LP2, 100-12000 W, Ø50 mm, 450-550/900-1100 nm, EtherNet/IP-M

Helios Pro Industrial Laser Power Sensors

Short Exposure Laser Power Sensor, LP2, 100-12000 W, Ø50 mm, 450-550/900-1100 nm, EtherNet/IP-M

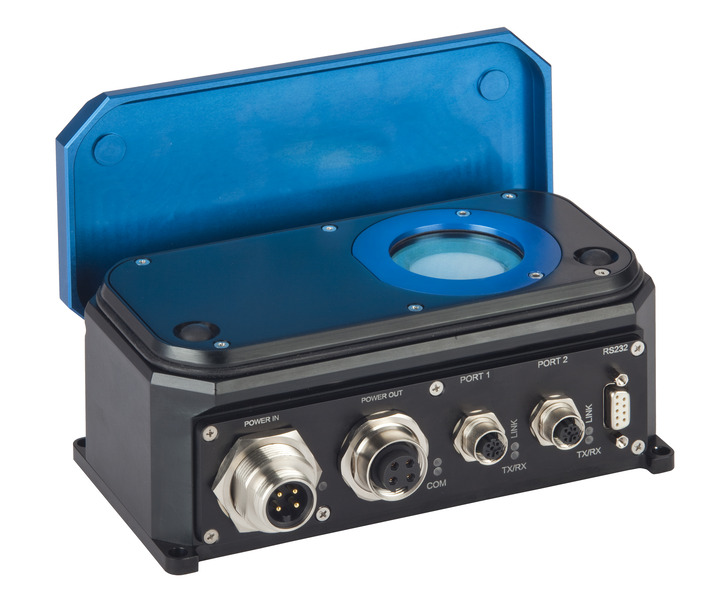

The Helios Pro - EtherNet/IP-M short exposure sensor (P/N 7Z07140) measures high power industrial lasers of up to 12kW by measuring the energy of a short time exposure to this power. The laser is set to a pulse of from 0.3 to several seconds. It measures the energy and exposure time of this sample of the power, and from this calculates the power. By keeping the pulse energy under 5 kJ, there is no need for water cooling and the sensor can be kept to a compact size. Helios Pro - EtherNet/IP-M is a version of Helios that has EtherNet/IP and RS232 communications, M12 connector for data, Mini 7/8" connector for power. For Profinet communication please see Helios Pro - Profinet. For EtherCAT communication please see Helios Pro - EtherCAT.

Specifications

Technical Specs

Spectral Range
450-550 nm, 900-1100 nm
Absorber Type
LP2
Aperture Size
Ø50 mm
Minimum Power
100 W
Maximum Average Power
12 kW
Minimum Pulse Energy
100 J
Maximum Pulse Energy
5 kJ

Response Time
3 s
Dimensions
Open - 200 x 135 x 146 mm, Closed - 200 x 125 x 86 mm (LxWxD)
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Spectral Range
450-550 nm, 900-1100 nm
Absorber Type
LP2
Aperture Size
Ø50 mm
Minimum Power
100 W
Maximum Average Power
12 kW
Minimum Pulse Energy
100 J
Maximum Pulse Energy
5 kJ

Response Time
3 s
Dimensions
Open - 200 x 135 x 146 mm, Closed - 200 x 125 x 86 mm (LxWxD)
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Resources & Downloads

Data Sheets

Short Exposure High Power Sensors - Helios Pro Datasheet(1.2 MB, PDF)

Manuals

Helios Pro User Manual(4.5 MB, PDF)
Helios & Helios Plus User Manual - German(2.1 MB, PDF)

3D Product Models

Drawings & CAD

Helios Pro EtherNet-IP-M Drawing(2.2 MB, PDF)

Software

GSDML.zip - Profinet configuration file(2.4 kB, ZIP)
EDS.zip – EtherNet/IP configuration file(17.6 kB, ZIP)
ECS.zip – EtherCAT configuration file(2.7 kB, ZIP)

Helios Pro PC Application

Software: Helios Pro PC Application
Power measurement based on short exposure time.

Firmware: Firmware of sensor can be upgraded via Helios Pro PC application.
To download the firmware file go to: "Help/Firmware Upgrade" screen in Helios Pro PC Application.

For Helios Pro – EtherNet/IP & Helios Pro – EtherNet/IP-M:

EtherNet/IP Configuration File:
To install the Helios Pro into a EtherNet/IP network, download the EDS.zip configuration file from the resource section above, and follow the instructions in the manual.

Cables

Description	Compatibility	Avail.	Price
7E01535Power Supply Cable 7/8” to flying leadsPower Supply Cable, 7/8” to flying leads termination 2m (1 unit supplied with Helios Pro - EtherNet/IP-M, optional for IPM-COM)	UNIVERSAL	Contact Us
7E11216ARS232 D9F to D9M 3m Shielded CableD9F to D9M Shielded 3m RS232 Cable (1 unit supplied with Helios Pro - EtherNet/IP-M, optional for the other Helios Pro sensors)	UNIVERSAL	Contact Us	$17
7E01209RS232 D9F to D9M 10m Shielded CableD9F to D9M Shielded 10m RS232 Cable (Optional for all Helios Pro sensors)	UNIVERSAL	Contact Us	$77
7E11211Data Cable Ethernet M12 to RJ-45Data Cable, Ethernet M12 D-coded to RJ-45 plug 3m (Optional for 70K-W, Helios Pro - EtherNet/IP-M and IPM-COM)	UNIVERSAL	Contact Us

Helios Pro Window Replacement Kit

Kit for replacing the Helios Pro window.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		7Z08447Window Replacement Kit, Helios Pro	UNIVERSAL			$303

Extended Warranty for Sensor

Customers that purchase the above items also consider the following items. Ophir-Spiricon meters and sensors include a standard manufacturers warranty for one year. Add a one year Extended Warranty to your meter or sensor, which includes one recalibration.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		XWAR-SENSORExtended Warranty for Sensor	UNIVERSAL		Contact Us	$450
