MWIR Continuous Zoom Lens, SupIR, 15-300 mm FL, f/5.5, 20 μm pitch
MWIR Continuous Zoom Lens, SupIR, 15-300 mm FL, f/5.5, 20 μm pitch

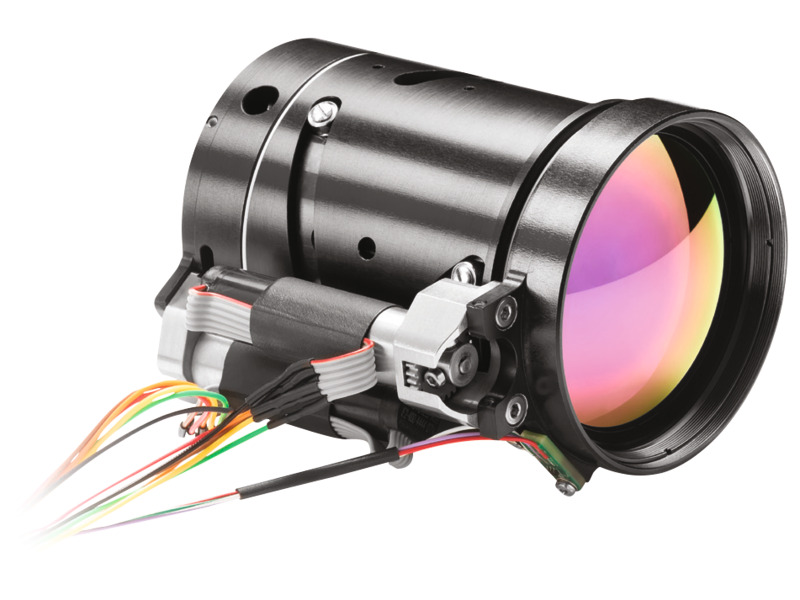

The SupIR 15-300mm f/5.5 motorized focus MWIR imaging lens (P/N 680313-002) has a 15-300 mm focal length with an f-number of 5.5. This continuous zoom lens features our hard carbon antireflection coating and is designed for standard definition 20 μm pixel pitch cooled MWIR cameras. These lenses provide a crisp image over the full zoom range, with MTF close to the diffraction limit. Providing outstanding detection, recognition and identification (DRI) ranges, these MWIR lenses are suitable for a wide range of commercial, surveillance and homeland security applications.
Horizontal Field of View (HFOV)
WFOV (15 mm)
| Format | |||
|---|---|---|---|
| Pitch | 320x256 | 480x384 | 640x512 |
| 30 µm | 36.4° | 53.7° | |
| 20 µm | 24.4° | 36.4° | 48.0° |
| 15 µm | 18.4° | 27.5° | 36.4° |
NFOV (300 mm)
| Format | |||
|---|---|---|---|
| Pitch | 320x256 | 480x384 | 640x512 |
| 30 µm | 1.8° | 2.7° | |
| 20 µm | 1.2° | 1.8° | 2.4° |
| 15 µm | 0.9° | 1.4° | 1.8° |
Resources & Downloads
Data Sheets
SupIR 15-300 mm f/5.5 Data Sheet(299.8 kB, PDF)
