Plano-Convex Lens, 1030-1090 nm, 25.4 mm, 100 mm FL, 2.0 mm Edge, Fiber Laser
Plano-Convex Lens, 1030-1090 nm, 25.4 mm, 100 mm FL, 2.0 mm Edge, Fiber Laser
Model: 633214-117
Product Series Overview

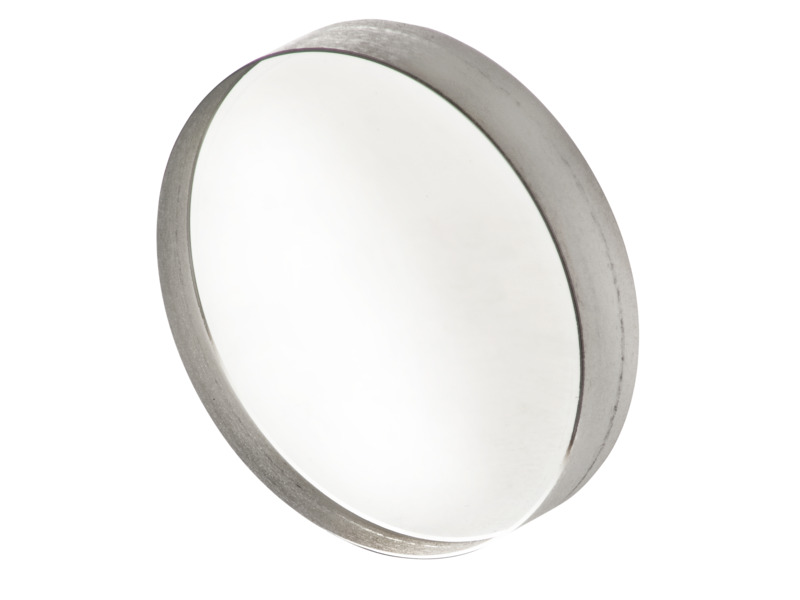

Plano-Convex Lenses for High Power Fiber LasersThe 633214-117 plano-convex lens features a 1030-1090 nm coating for use with 1 micron fiber lasers. The lens is 25.4 mm diameter with a 100 mm focal length and 2.0 mm edge thickness.
Specifications
- Diameter25.4 mm
- Focal Length100 mm
- Edge Thickness2.00 mm
- Lens ShapePlano-Convex
- TypeSingle Lens Element
- Angle of Incidence0-15º
- Surface Quality10-5 scratch-dig
