OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, USB
OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, USB

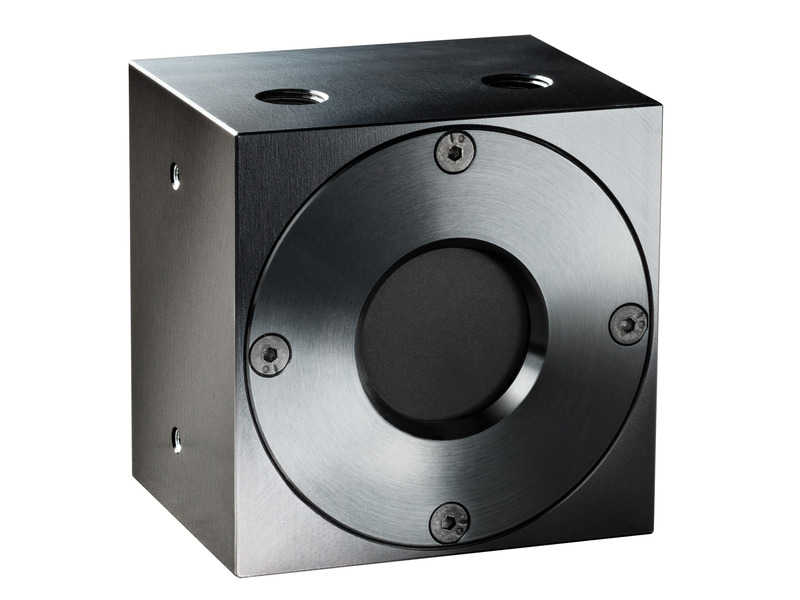

The 600W-UAU OEM thermal power and energy sensor is water-cooled with an 26 mm aperture. It can measure laser power from 5 to 600 W. It can measure energy from 500 mJ to 300 J. Its high damage threshold LP2 absorber covers the spectral range from 350-2200 nm. It has USB output.
Specifications
- Spectral Range350-2200 nm
- Maximum Average Power600 W water cooled free standing
- Maximum Average Power Density11 kW/cm² at 600 W
- Minimum Power5 W
- Maximum Pulse Energy300 J
- Maximum Energy Density <100 ns0.1 J/cm²
- Maximum Energy Density 2 ms130 J/cm²
- Minimum Pulse Energy500 mJ
- Response Time2.5 s
- CommunicationUSB
- Aperture SizeØ26 mm
- Dimensions65 x 65 x 49 mm (LxWxD)
- RoHS ComplianceYes
- China RoHS ComplianceYes
Resources & Downloads
3D Product Models
Data Sheets
Drawings & CAD
600W-UAU Drawing(178.9 kB, PDF)
