UV Neutral Density Filter Set for Beam Profilers
UV Neutral Density Filter Set for Beam Profilers

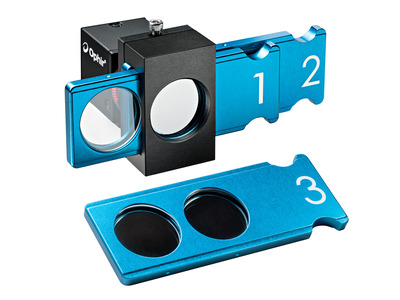

C-mount interface for universal application to our CCD and Pyroelectric cameras 190-380nm attenuation covers Excimer, Helium Cadmium, and the Nd:YAG UV harmonic laser wavelengths. Attenuation with these ND filters permits the best use of the dynamic range of a beam profiling camera. Attenuation range of 0.3 to 6.0 optical densities (ND). Set consists of three slides with two filters in each slide.
- Attenuation range of 0.3 to 6.0 optical densities
- Includes three slides with two filters in each slide
- Two filters can be employed at one time See All Features
Specifications
- Spectral Range190-380 nm
- Damage Threshold100 W/cm² CW, 20 mJ/cm² for 10ns pulses, no distortion
- Clear ApertureØ20 mm
- MaterialInconel
- InterfaceC-mount
Resources
Drawings & CAD
UV ND Filter Drawing(240.9 kB, PDF)
Catalogs
Laser Beam Profilers Catalog (7.6 MB, PDF)
Technical Articles
Technical Notes
UV ND Filter Array for C-mount Cameras(255.3 kB, PDF)
Data Sheets
UV ND Filters Datasheet(92.5 kB, PDF)
