680356-001
SupIR 50-1350mm f/5.5

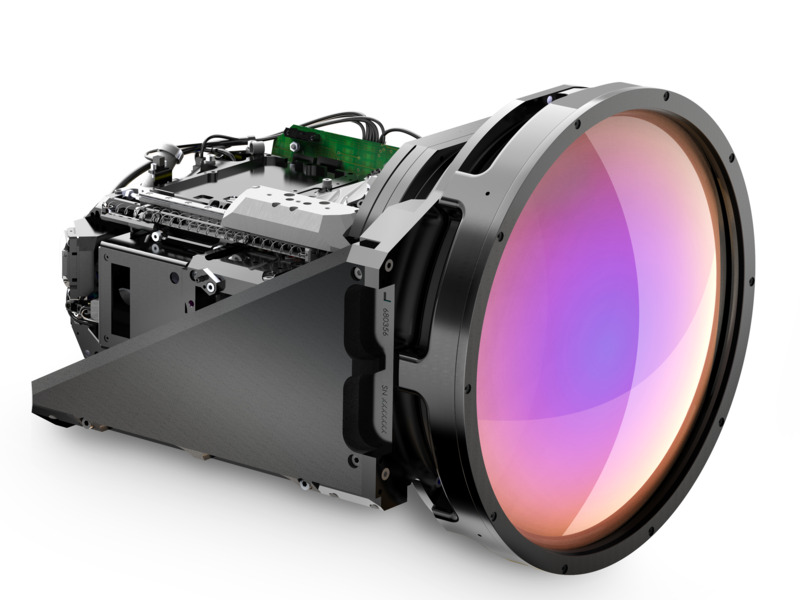

MWIR Continuous Zoom Lens, SupIR, 50-1350 mm FL, f/5.5, Low Reflection Hard Carbon, HD

HFOV [deg]

WFOV (50 mm)

Format
Pitch 640x512 1280x1024
15 µm 10.8° 20.5°

NFOV(1350mm)

Format
Pitch 640x512 1280x1024
15 µm 0.4° 0.8°

Specifications

  • Type
    Continuous Zoom
  • Focal Length
    50-1350 mm
  • F/#
    5.5
  • Coating Type
    Low Reflection Hard Carbon
  • Spectral Range
    3.4-5.0 μm
  • Avg.Trns.
    70%
  • Cold Stop FPA Distance
    28 mm
  • Cold Stop Clear Aperture
    Ø5.09 mm
  • Back Focal Length
    37.6 mm in air
  • Minimum Focus Range
    5 m Wide, 200 m Narrow
  • Nuc (by defocus)
    Yes
  • Focus Mechanism
    Motorized
  • Focus Time
    ≤8 s
  • Zoom Mechanism
    Motorized
  • Zoom Time
    ≤8 s
  • Weight
    13.7 kg
  • Dimensions
    Ø281 mm x 376.4 mm, height 293 mm
  • Drive Voltage
    28 VDC
  • Current Consumption
    1.25 A average, 2.5 A peak
  • Communication Interface
    RS422
  • Operating Temperature Range
    -20°C to +65°C
  • Storage Temperature Range
    -54°C to +71°C
  • Sealing
    IP 67 front element only
  • HD Format
    Yes
  • Wavelength Region
    MWIR

Features

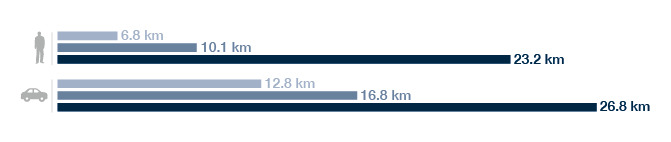

SupIR 50-1350mm f/5.5 f/4.0 Detection, Recognition & Identification (DRI) Range

DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!

The calculations used here are based on the “Johnson Criteria”. According to the Johnson Criteria, the minimum resolution, pixels on target, required to achieve a 50% probability for an observer to discriminate an object are:

  • Detection: An object is present – 2 pixels on target (Lower Bar)
  • Recognition: discern the type of object, a human vs. a vehicle – 8 pixels on target (Middle Bar)
  • Identification: discern specific objects, a man vs. a woman, a car model – 12.8 pixels on target (Upper Bar)

Live demo: SupIR 50-1350mm f/5.5 MWIR Suited for small pixels VGA and HD IR cameras

High Performance Mid-Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

  • Physical Vapor Deposition (PVD) – Thermal heating and electron gun
  • Ion Assisted Deposition (IAD) – Ion gun
  • Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
