680294-001
SupIR 35-690mm f/4.0

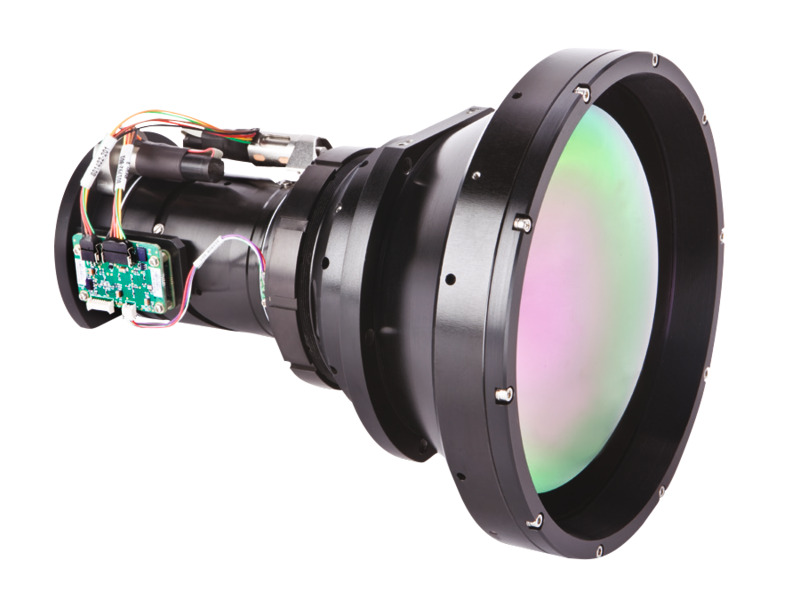

MWIR Continuous Zoom Lens, SupIR, 35-690 mm FL, f/4.0, Hard Carbon, 19.4 mm CSH, 640x512 15 μm pitch
680294-002
SupIR 35-690mm f/4.0
MWIR Continuous Zoom Lens, SupIR, 35-690 mm FL, f/4.0, LR Hard Carbon, 19.4 mm CSH, 640x512 15 μm pitch
680294-003
SupIR 35-690mm f/4.0
MWIR Continuous Zoom Lens, SupIR, 60-690 mm FL, f/4.0, Hard Carbon, 19.4 mm CSH, 1280x1024 10 μm pitch
680294-004
SupIR 35-690mm f/4.0
MWIR Continuous Zoom Lens, SupIR, 60-690 mm FL, f/4.0, LR Hard Carbon, 19.4 mm CSH, 1280x1024, 10 μm pitch
680294-006
SupIR 35-690mm f/4.0
MWIR Continuous Zoom Lens, SupIR, 60-690 mm FL, f/4.0, High Durability Hydrophobic, 19.4 mm CSH, 1280x1024, 10 μm pitch
680294-007
SupIR 35-690mm f/4.0
MWIR Continuous Zoom Lens, SupIR, 60-690 mm FL, f/4.0, Hard Carbon Hydrophobic, 19.4 mm CSH, 1280x1024, 10 μm pitch
680294-008
SupIR 35-690mm f/4.0
MWIR Continuous Zoom Lens, Hard Carbon Hydrophobic, 19.4 mm CSH, 640x512 15 μm pitch
680295-001
SupIR 35-690mm f/4.0
MWIR Continuous Zoom Lens, SupIR, 35-690 mm FL, f/4.0, Hard Carbon, 20.5 mm CSH, 640x512 15 μm pitch
680295-002
SupIR 35-690mm f/4.0
MWIR Continuous Zoom Lens, SupIR, 35-690 mm FL, f/4.0, LR Hard Carbon, 20.5 mm CSH, 640x512 15 μm pitch
680295-003
SupIR 35-690mm f/4.0
MWIR Continuous Zoom Lens, SupIR, 60-690 mm FL, f/4.0, LR Hard Carbon, 20.5 mm CSH, 1280x1024 10 μm pitch
680295-005
SupIR 60-690mm f/4.0
MWIR Continuous Zoom Lens, SupIR, 60-690 mm FL, f/4.0, High Durability Hydrophobic, 20.5 mm CSH, 1280x1024 10 μm pitch
680295-006
SupIR 60-690mm f/4.0
MWIR Continuous Zoom Lens, SupIR, 60-690 mm FL, f/4.0, Hard Carbon Hydrophobic, 20.5 mm CSH, 1280x1024 10 μm pitch

WFOV (35 mm)

Format
Pitch 640x512
15 µm 15.2°
10 µm -

WFOV (60 mm)

Format
Pitch 1280x1024
10 µm 11.5°

NFOV (690 mm)

Format
Pitch 640x512 1280x1024
15 µm 0.8°
10 µm - 1.0°

Specifications

  • Type
    Continuous Zoom
  • Focal Length
    35 to 690 mm
  • F/#
    4.0
  • Spectral Range
    3.4-5.0 μm
  • Minimum Focus Range
    5 m Wide, 200 m Narrow
  • Nuc (by defocus)
    Yes
  • Focus Mechanism
    Motorized
  • Focus Time
    ≤1 s
  • Zoom Mechanism
    Motorized
  • Zoom Time
    ≤7 s at -32°C
    ≤5 s at T ≥0°C
  • Through-zoom Boresight
    Within a radius of 0.35mm at the focal plane along the full zoom range
  • Weight
    4 kg
  • Dimensions
    Ø210mm x 264mm
  • Drive Voltage
    12 V
  • Current Consumption
    0.5 A average, 1.0 A peak
  • Communication Interface
    RS422
  • Operating Temperature Range
    -32°C to +75°C
  • Storage Temperature Range
    -54°C to +85°C
  • Sealing
    IP 67 front element only
  • HD Format
    Yes
  • Wavelength Region
    MWIR

Features

SupIR 35-690mm f/4.0 Detection, Recognition & Identification (DRI) Range

DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!

The calculations used here are based on the “Johnson Criteria”. According to the Johnson Criteria, the minimum resolution, pixels on target, required to achieve a 50% probability for an observer to discriminate an object are:

  • Detection: An object is present – 2 pixels on target (Lower Bar)
  • Recognition: discern the type of object, a human vs. a vehicle – 8 pixels on target (Middle Bar)
  • Identification: discern specific objects, a man vs. a woman, a car model – 12.8 pixels on target (Upper Bar)
