The Smallest and Lightest Continuous Zoom Lens Designed for MWIR 10μm VGA Detectors

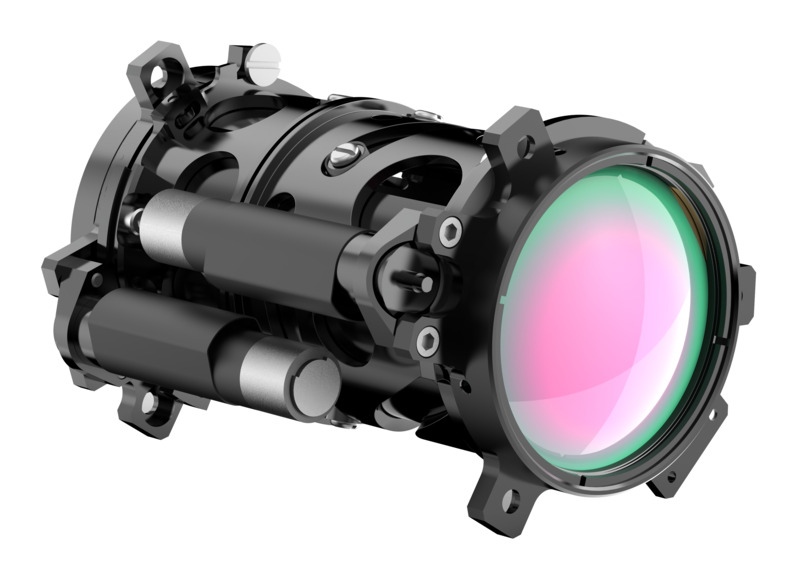

The Ophir LightIR 10-135mm MWIR f/3.6 continuous zoom lens is a compact thermal imaging lens, optimized for 10μm pitch VGA FPA (focal plane array) detectors. It weighs only 250gr, which makes it 20% lighter than existing similar lenses. Its compact optic design significantly decreases the length and weight of the lens, and therefore, the overall size and weight of the optical system in which it is incorporated.

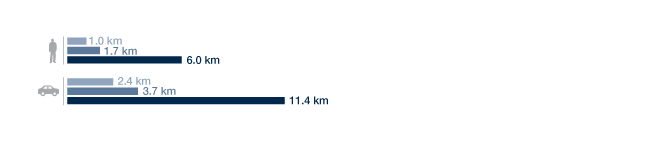

With its unparalleled combination of low-SWaP capabilities, detection range exceeding 11km, and a specialty coating to withstand harsh, humid and salty environments, the LightIR 10-135mm f/3.6 continuous zoom lens is an enabler for advanced drone, tactical UAV IR cameras, and micro/mini tactical payloads in the commercial, homeland security, and defense markets.
- Lightweight, 250gr
- Detection range exceeds 11km
- Efficient compact optics design for max. volume use
- Designed for MWIR 10μm pitch VGA detectors
- Designed to withstand harsh environmental conditions
- Ideal for mini/micro tactical payloads
