Compare Model Drawings, CAD & Specs Availability Price

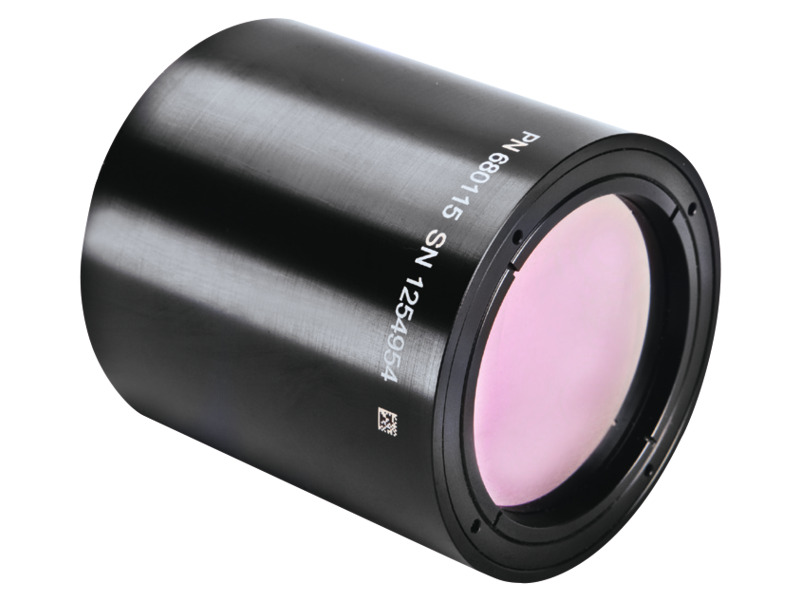

SupIR 65mm f/1.2
LWIR 1-FOV Fixed Lens, SupIR, 65 mm Focal Length, f/1.2, High Durability, HD
SupIR 65mm f/1.2
LWIR 1-FOV Fixed Lens, SupIR, 65 mm Focal Length, f/1.2, Hard Carbon, HD

Pitch 320x240 384x288 640x480 1024x768
25 µm 7.0° 8.4°
17 µm 4.8° 5.7° 9.6°
12 µm 3.4° 4.1° 6.8° 10.8°


  • Type
    Single Field of View
  • Focal Length
    65 mm
  • F/#
  • Spectral Range
    8-12 μm
  • Back Focal Length
    42.07 mm in air
  • Focus Mechanism
  • Focus Range
    2.5 m to infinity
  • Depth of Field
    175 m to infinity
  • Operating Temperature Range
    -40°C to +80°C
  • Storage Temperature Range
    -55°C to +85°C
  • Sealing
    IP 67 front element only
  • Wavelength Region


High Performance Long Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

  • Physical Vapor Deposition (PVD) – Thermal heating and electron gun
  • Ion Assisted Deposition (IAD) – Ion gun
  • Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
