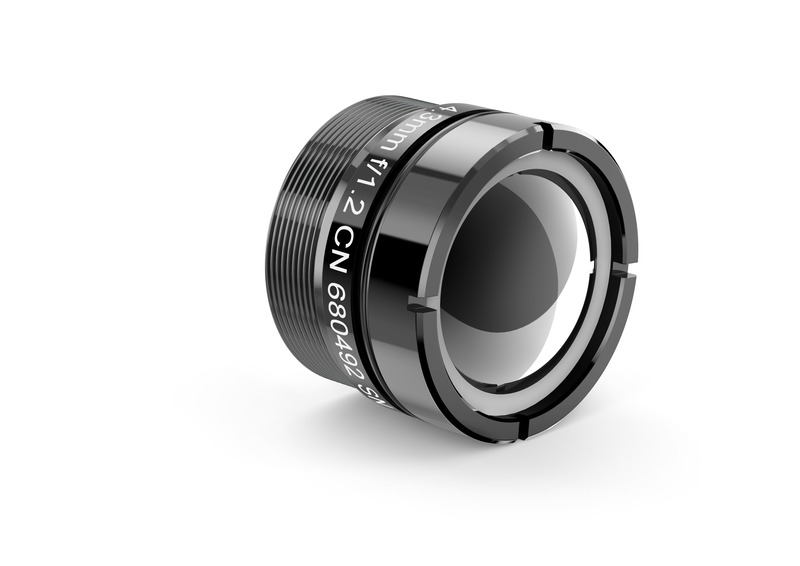

SupIR 4.3mm f/1.2
LWIR 1-FOV Fixed Lens, SupIR, 4.3 mm Focal Length, f/1.2, Hard Carbon

HFOV [deg]

Pitch 320x240 384x288 640x480 672x544
17 µm 75° 92°
12 µm 51.8° 62.8° 111.9°
10 µm 42.9° 51.8° 90° 95.2°


  • Type
    Single Field of View
  • Focal Length
    4.3 mm
  • F/#
  • Coating Type
    Hard Carbon
  • Spectral Range
    8-12 µm
  • Back Focal Length
    7.74 mm in air
  • Focus Mechanism
  • Focus Range
    1 m to infinity
  • Depth of Field
    0.5 m to infinity
  • Weight
    12 g
  • Dimensions
    Ø19.94 x 14.5 mm
  • Operating Temperature Range
    -40ºC to +80ºC
  • Storage Temperature Range
    -55ºC to +85ºC
  • Sealing
    IP67 front element only
  • Wavelength Region


High Performance Long Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

  • Physical Vapor Deposition (PVD) – Thermal heating and electron gun
  • Ion Assisted Deposition (IAD) – Ion gun
  • Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
