High-performance LWIR uncooled lens designed to eliminate dependency on Germanium while maintaining high optical performance

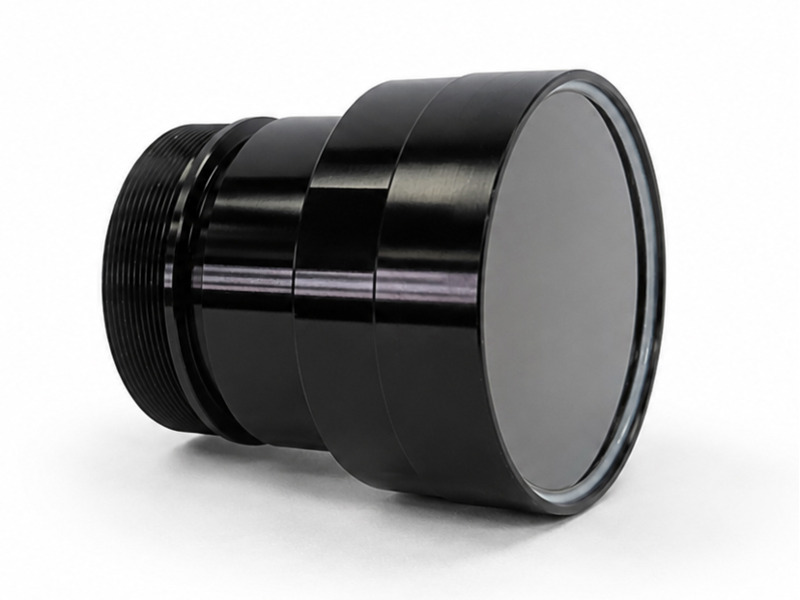

The SupIR 33.5mm f/1.3 fixed focus LWIR imaging lens has a 33.5 mm focal length with f-number of 1.3. This single field of view lens (1-FOV) is designed for 640x480 VGA format 12μm pixel pitch uncooled LWIR cameras.
- Germanium free design
- Advanced technologies for the highest performance long wave focal planes
- LWIR High-durability and hard-carbon AR coatings for 8-12 µm
- Passive athermalization with the highest imaging performance from -32° to +71°C
- Compatible with 12 μm pixel pitch, 640x480 VGA format LWIR cameras
- Providing superior performance from 15 m out to infinity
- Cost-effective solution for high-resolution thermal imaging and sensing
- Requires export license See All Features
HFOV [deg]
| Format | ||
|---|---|---|
| Pitch | 640x480 | |
| 12 µm | 13.1° | |
Specifications
- Focal Length33.5mm
- F/#1.0
- Average Transmission (8-12μm)≤89% (HC)
- Focus MechanismFixed
- Focus Range3m to infinity
- Depth of Field15m to infinity
- Weight≤30gr
- DimensionsØ31mm x 32mm
- BWD5.75mm in air
- Operating Temperature Range-32°C to +71°C
- Storage Temperature Range-40°C to +80°C
- SealingIP 68 front element only
Features
High Performance Long Wave Focal Plane
Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.
Hard-carbon AR Coating
Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:
- Physical Vapor Deposition (PVD) – Thermal heating and electron gun
- Ion Assisted Deposition (IAD) – Ion gun
- Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings
Passive Athermalized Lens Assembly
Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
Designed for 640x480 Format LWIR Cameras
The SupIR 33.5mm f/1.3 lens is designed for use with 640x480 pixel array uncooled LWIR cameras with a 12 μm pixel pitch. It provides a 13.1° horizontal field of view.
