SupIR 15.6 mm f/1.0 Fixed Focus LWIR XGA Imaging Lenses

Products
HFOV [deg]
Features
Resources
Contact Us

Overview

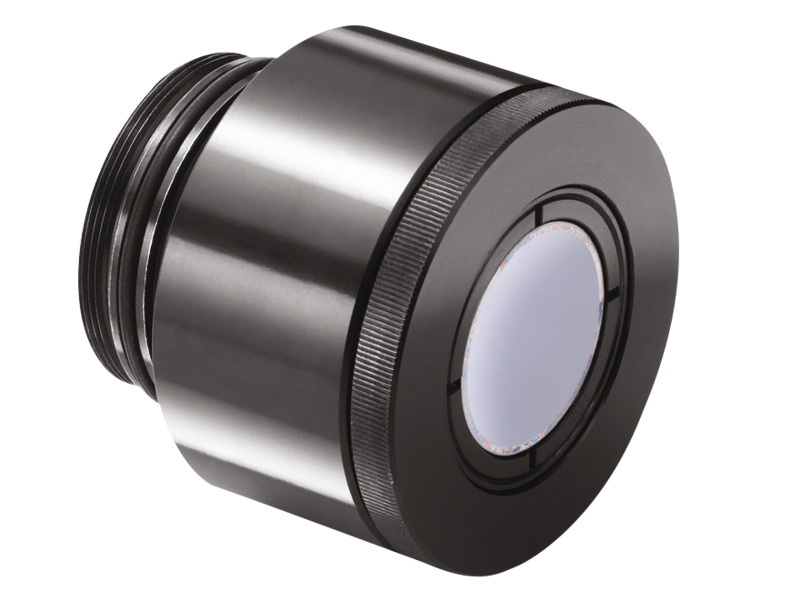

The SupIR 15.6mm f/1.0 fixed focus LWIR imaging lens has a 15.6 mm focal length with an f-number of 1.0. This single field of view lens (1-FOV) is designed for 1024x768 XGA format uncooled LWIR cameras.

Advanced technologies for the highest performance long wave focal planes
LWIR hard-carbon AR coating for 8-12 µm
Passive athermalization with the highest imaging performance from -40 to +85°C
Compatible with 12 μm pixel pitch, 1024x768 XGA format LWIR cameras
Providing superior performance from 5 m out to infinity
Cost-effective solution for high-resolution thermal imaging and sensing

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Coating Type	Avg.Trns.	Availability	Featured Item	Price		Brand
		680054-001 SupIR 15.6mm f/1.0 LWIR 1-FOV Manual Focus, SupIR, 15.6 mm Focal Length, f/1.0, Hard Carbon, XGA Contact Us	680054-001 SupIR 15.6mm f/1.0 LWIR 1-FOV Manual Focus, SupIR, 15.6 mm Focal Length, f/1.0, Hard Carbon, XGA	UNIVERSAL	0.0	1.0	0.0		0.0	Hard Carbon, MWIR block filter	87.0%	Contact Us				Ophir
		680054-003 SupIR 15.6mm f/1.0 LWIR 1-FOV Manual Focus, SupIR, 15.6 mm Focal Length, f/1.0, Hard Carbon, XGA, M34x0.5 Contact Us	680054-003 SupIR 15.6mm f/1.0 LWIR 1-FOV Manual Focus, SupIR, 15.6 mm Focal Length, f/1.0, Hard Carbon, XGA, M34x0.5	UNIVERSAL	0.0	1.0	0.0		0.0	Hard Carbon, MWIR block filter	87%	Contact Us				Ophir

Show All

HFOV [deg]

	Format
Pitch	320x240	384x288	640x480	1024x768
25 µm	29.3°	35.2°
17 µm	19.8°	23.9°	40.0°
12 µm	14.0°	16.8°	28.1°	45.4°

HFOV [deg]

	Format
Pitch	320x240	384x288	640x480	1024x768
25 µm	29.3°	35.2°
17 µm	19.8°	23.9°	40.0°
12 µm	14.0°	16.8°	28.1°	45.4°

Specifications

Type

Single Field of View
Focal Length

15.6 mm
F/#

1.0
Coating Type

Hard Carbon
Spectral Range

8-12 μm
Average Transmission (8-12μm)

87%
Back Focal Length

18 mm in air

Focus Mechanism

Manually adjustable
Focus Range

0.75 m to infinity
Depth of Field

5 m to infinity
Operating Temperature Range

-40°C to +85°C
Storage Temperature Range

-45°C to +100°C
Sealing

IP 67 front element only, focus mechanics unsealed
Wavelength Region

LWIR

Specifications

Type

Single Field of View
Focal Length

15.6 mm
F/#

1.0
Coating Type

Hard Carbon
Spectral Range

8-12 μm
Average Transmission (8-12μm)

87%
Back Focal Length

18 mm in air

Focus Mechanism

Manually adjustable
Focus Range

0.75 m to infinity
Depth of Field

5 m to infinity
Operating Temperature Range

-40°C to +85°C
Storage Temperature Range

-45°C to +100°C
Sealing

IP 67 front element only, focus mechanics unsealed
Wavelength Region

LWIR

Features

High Performance Long Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
