A set of adjustable ND filters used to control laser intensity before the beam reaches the camera imager.

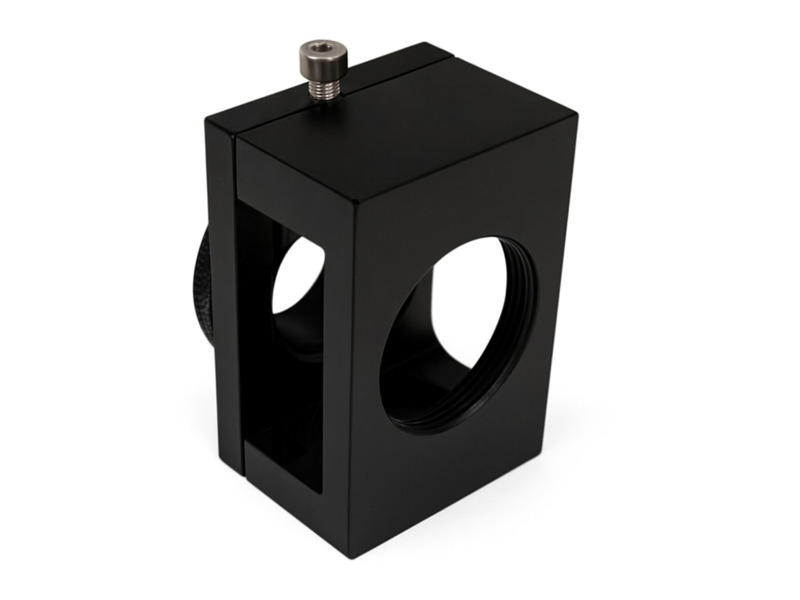

Filter Slides for LBS-300s Series and C-Mount Camera Slider Holders Designed for easy mounting, these filter sliders fit seamlessly into LBS-300s series and C-mount camera slider holders. Each slider contains two filters, and by combining different sliders, users can achieve variable light attenuation ranging from ND 0.3 (50% attenuation) up to ND 8.0 (attenuation by a factor of 100 million).
This is especially handy when trying to find the laser focus.
Specifications
- Spectral Range200-2200 nm
- Damage ThresholdNIR - 50W/cm2 CW,1J/cm2, 10ns pulses
UV - 100W/cm2 CW, 20mJ/cm2, 10ns pulses
VIS - 50W/cm2 CW,1J/cm2, 10ns pulses
- Clear ApertureØ20 mm
- InterfaceC-mount
