1:1 UV Image Converter for Beam Profilers

1:1 UV Image Converter for Beam Profilers

Products
Accessories
Resources
Contact Us

Overview

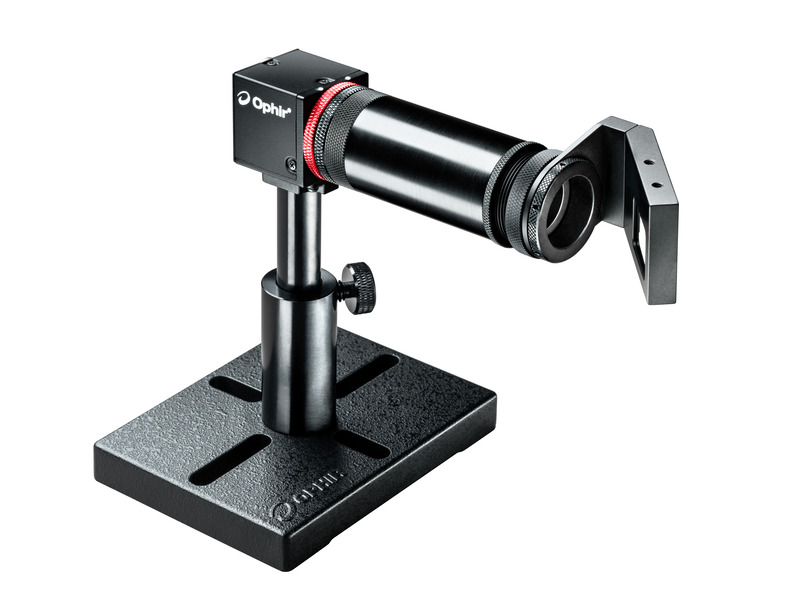

The 1:1 UV image converter is a screw-on telescope that converts 1:1 UV image to visible and images the beam onto the CCD without changing the size. It fits 4.5 mm recess CS-mount cameras.

Converts UV wavelengths to visible
C-mount
193 to 360 nm wavelength range

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		SPZ17023 1X UV image converter UV Image Converter, 1:1, 193-360 nm $3,460 In Stock	SPZ17023 1X UV image converter UV Image Converter, 1:1, 193-360 nm	UNIVERSAL	0.0	1.0	0.0		0.0	In Stock		$3,460		Ophir

Show All

Specifications

Spectral Range

193-360 nm
Damage Threshold

100 W/cm², 2 J/cm² with beam splitter
Clear Aperture

Ø18 mm

Reduction Ratio

1:1 imaging ±2% with included correction factor
Interface

C-mount

Specifications

Spectral Range

193-360 nm
Damage Threshold

100 W/cm², 2 J/cm² with beam splitter
Clear Aperture

Ø18 mm

Reduction Ratio

1:1 imaging ±2% with included correction factor
Interface

C-mount

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SPZ17015 1st Wedge Beam Splitter 1st Wedge Beam Splitter, Ø15 mm, 193-2500 nm	UNIVERSAL		Contact Us	$736
		LBS-300s Beam Splitter for Laser Beam Profilers LBS-300s Beam Splitter for Laser Beam Profilers	UNIVERSAL				Learn More

Resources

Data Sheets

Imaging UV lasers Datasheet (175.2 kB, PDF)

Technical Articles

Manuals

1X UV Image Converter (240.8 kB, PDF)

Resources

Data Sheets

Imaging UV lasers Datasheet (175.2 kB, PDF)

Technical Articles

Manuals

1X UV Image Converter (240.8 kB, PDF)
