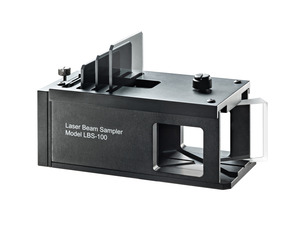

LBS-100 Beam Splitter for Laser Beam Profilers
LBS-100 Beam Splitter for Laser Beam Profilers
The LBS-100 system that is not as compact as the LBS-300s but has larger aperture, and has versions for longer wavelengths. The system contains the mounting frame, 1 wedge beam splitter and several attenuators. The exit end of the LBS-100 is standard C-mount/Pyrocam thread so all our cameras can be mounted to the frame.
- Includes mounting frame, 1 wedge beam splitter and attenuators
- Standard C-mount/Pyrocam thread
- 6.5 degree wedge angle See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SP90061LBS-100Beam Sampling System, C-mount, 400-700 nm | 8 Weeks | ||||
 | SP90057LBS-100 YAGBeam Sampling System, C-mount, 1064 nm, 20-500 W | In Stock | ||||
| SP90058LBS-100IR 0.5Beam Sampling System, Pyrocam, 9-11 µm, 50-1000 W | 5 Weeks | ||||
| SP90059LBS-100IR 5.0Beam Sampling System, Pyrocam, 9-11 µm, 0.4-100 W | 8 Weeks |
Specifications
| Models | | | | | |
|---|---|---|---|---|---|
| Spectral Range | 400-700 nm | 1064 nm | 10.6 µm | 10.6 µm | |
| Material | Wedge: UVFS Filter: Bulk ND | Wedge: UVFS Filter: Bulk ND | Wedge: ZnSe Filter: CaF2 | Wedge: ZnSe Filter: CaF2 | |
| Wedge Reflection | Uncoated, 4% | AR coated, ≤1% | AR coated, ≤0.5% | AR coated, ≤5% | |
| Nominal ND | 0.3, 0.7, 1.0, 2.0, 3.0, 4.0 ND at 632 nm | 0.3, 0.7, 1.0, 2.0, 3.0, 4.0 ND at 632 nm | |||
| Transmission | 30% for 3 mm flat 60% for 1 mm flat | 30% for 3 mm flat 60% for 1 mm flat | |||
| Damage Threshold | Wedge: 100 W/cm² CW, 6 kJ/cm² 1 ms pulse Filter: 50 W/cm² | Wedge: 500 W/cm² CW, 30 kJ/cm² 1 ms Pulse Filter: 50 W/cm² | Wedge: 1000 W CW, 105 J/cm² Filter: 50 W/cm² | Wedge: 100 W CW, 104 J/cm² Filter: 50 W/cm² | |
| Clear Aperture | Ø19 mm | Ø19 mm | Ø30 mm | Ø30 mm | |
| Interface | C-mount | C-mount | Pyrocam | Pyrocam |
Frequently Asked Questions
- Can I use LBS-100 both for beam profiling and power measuring?Answer
Yes, the main function of LBS-100 beam splitter is Beam profiling, however it allows simultaneous measurement of a beam transmitted thru wedge by power meter.
- What should be my Safety concerns while using LBS-100?Answer
Regular laser safety precautions should apply. Please note, that the main incident beam will exit the LBS-100, refracted approximately 6.5°. Provision must be made to safely contain the transmitted beam by beam dump or power meter.
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SP90141Replacement Filter Set, LBS-100 | 6 Weeks | ||||
| SP90142Replacement Filter Set, LBS-100 YAG | In Stock | ||||
| SP90196Mounting Adapter, L11059 Camera to LBS-100 Attenuator | |||||
 | SPZ17029Mounting Adapter, LBS-100 Attenuator to 4X Beam Reducer | In Stock |
Resources
Data Sheets
LBS-100 Attenuator Datasheet(143.4 kB, PDF)
Drawings & CAD
LBS-100 Drawing(158.9 kB, PDF)
Technical Notes
LBS-100 User Notes(572.7 kB, PDF) Integrated Solutions
