Stackable Neutral Density Filter, C-Mount, ND1, Red Housing

Stackable Neutral Density Filter, C-Mount, ND1, Red Housing

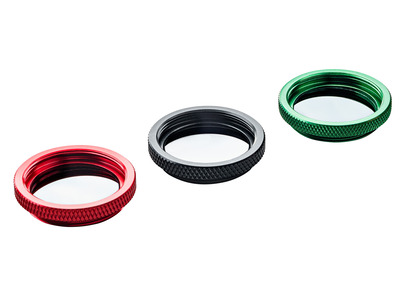

The SPZ08234 stackable C-mount ND1 filter has a red housing for easy identification with ~10% transmission in the visible. The individual filters can be screwed on top of each other and thus stacked and also can be combined with beam splitters. They are set at a small wedge angle in the housing so as not to cause interference effects.
Specifications
- Transmission~10%
- Housing ColorRed
- Damage Threshold50 W/cm², 1 J/cm² for ns pulses
- Nominal ND1
- Clear ApertureØ19 mm
- InterfaceC-mount
Resources & Downloads
Data Sheets
Stackable ND Filters Datasheet(210.5 kB, PDF)
