BeamWatch Non-Contact Beam Profiler, 130 µm Min Spot Size, 950-1100 nm, GigE
BeamWatch Non-Contact Beam Profiler, 130 µm Min Spot Size, 950-1100 nm, GigE

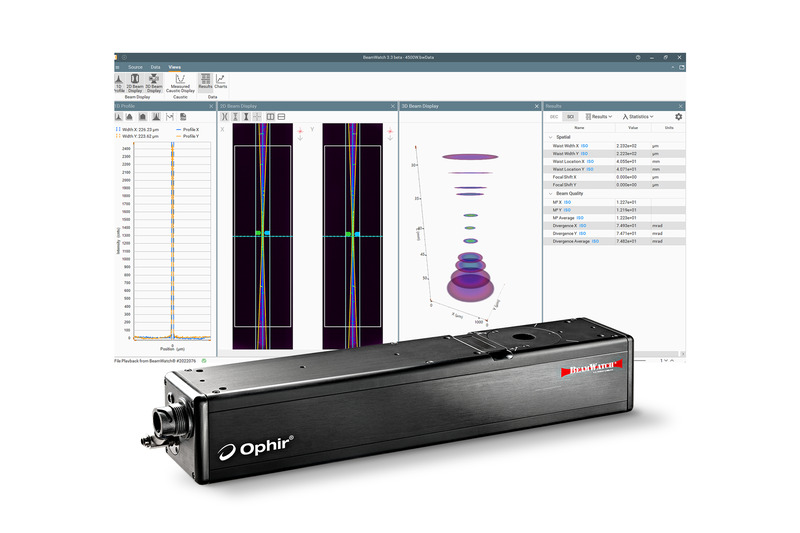

The BW-NIR-130 BeamWatch non-contact profiling system (P/N SP90623) accurately captures and analyzes industrial multi-kilowatt lasers wavelengths from 950 to 1100 nm by measuring Rayleigh Scattering. It features a complete passthrough beam measurement technique with a 130 µm minimum spot size, no moving parts, and a lightweight compact design which makes it ideal for comprehensive analysis of industrial multi-kilowatt lasers.
Specifications
- Product NameBW-NIR-130
- Sensor TypeCCD camera, contactless
- Spectral Range950-1100 nm
- Minimum Spot Size130 µm
- Focus Spot Size130 µm to ~2.75 mm
- Power Range400 W to >100 kW
- Minimum Power Density15 kW/cm
- Maximum Beam Diameter at Entrance/Exit12.5 mm
- CommunicationGigE
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
