BeamWatch Plus , Non-Contact Beam Profiler, 45 µm Min Spot Size, 420-635nm and 950-1100 nm, GigE
BeamWatch Plus , Non-Contact Beam Profiler, 45 µm Min Spot Size, 420-635nm and 950-1100 nm, GigE

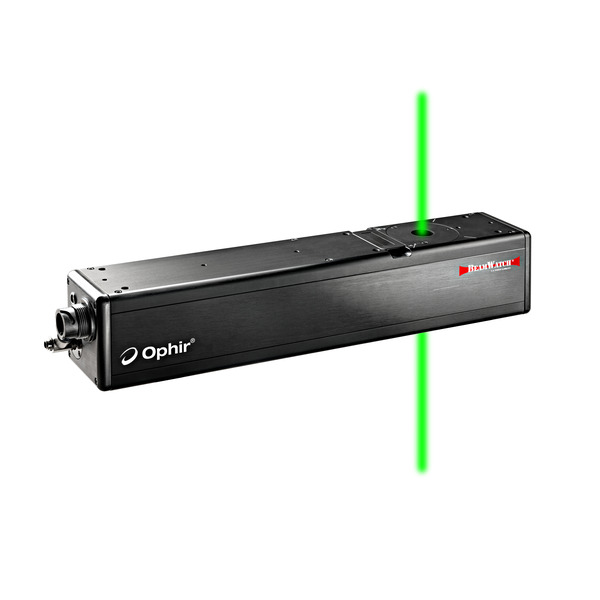

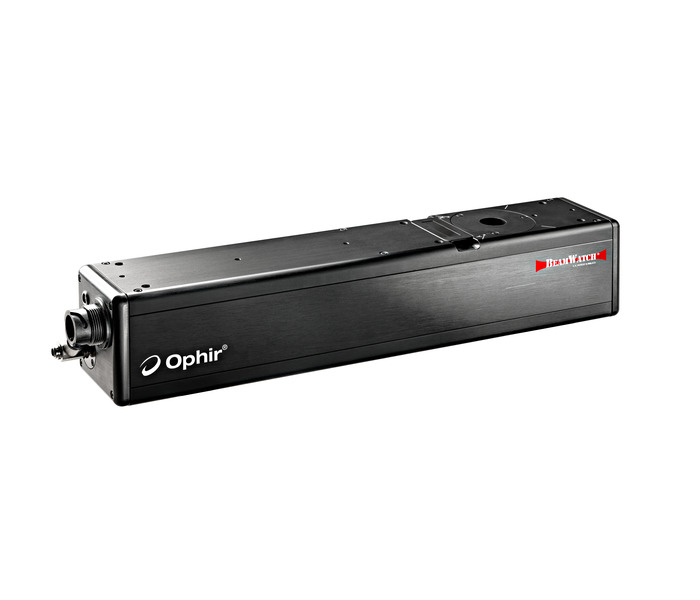

The BW-PLUS-45 non-contact profiling system (P/N SP90613) accurately captures and analyzes industrial multi-kilowatt lasers wavelengths from 950 to 1100 nm and from 420 to 635nm by measuring Rayleigh Scattering. It features a complete passthrough beam measurement technique with a 45 µm minimum spot size, no moving parts, and a lightweight compact design which makes it ideal for comprehensive analysis of industrial multi-kilowatt lasers.
Specifications
- Product NameBW-PLUS-45
- Sensor TypeCCD camera, contactless
- Spectral Range420-1100nm, 950-1100nm
- Minimum Spot Size45 µm
- Focus Spot Size45µm to 1mm
- Power RangeNIR: 400 W to >100 kW; VIS: 3W to >100 kW
- Minimum Power Density15 kW/cm
- Maximum Beam Diameter at Entrance/Exit12.5 mm
- CommunicationGigE
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
Resources & Downloads
3D Product Models
Data Sheets
BeamWatch® Datasheet(267.2 kB, PDF)
Drawings & CAD
BeamWatch-SP90613 Drawing(60.8 kB, PDF)
Manuals
BeamWatch PLUS Quick Start (684.8 kB, PDF) BeamWatch PLUS User Notes(1.9 MB, PDF) Cup Aperture for Beamwatch User Notes(551.9 kB, PDF)
