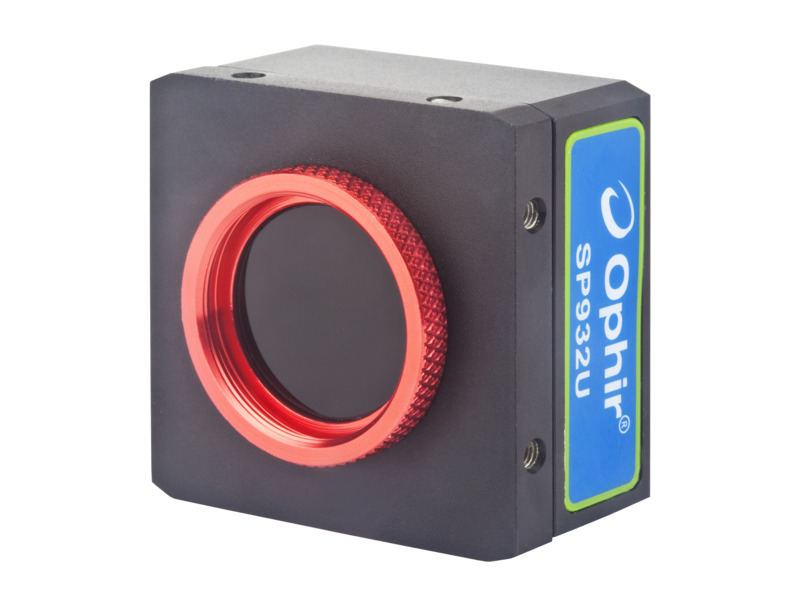

The BGS-USB3-SP932U High Resolution beam profiler camera (P/N SP90606) is equipped with the highest resolution CMOS (Global Shutter) sensor. It utilizes the innovative algorithm of “Blooming Correction” to improve accuracy at NIR wavelength range. The included BeamGage Standard software is our full-function software with an extensive set of ISO quantitative measurement, our patented UtraCal™ algorithm for the highest accuracy measurements in the industry
Specifications
- Product NameBGS-USB3-SP932U
- Spectral Range190-1100 nm
- Beam Size34.5μm-5.3mm
- Communication InterfaceUSB 3.0
- Sensor TypeSilicon CMOS
- Compatible Light SourcesCW, Pulsed
- Active Area7.06mm x 5.3mm
- 4.5mm
- Elements2048 x 1536
- Effective Pixel Pitch3.45μm
- Dynamic Range72 dB
- Full Resolution Frame Rate24fps
- Saturation Intensity32μW/cmᒾ at 633nm, 500μW/cmᒾ at 1064nm
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
Resources & Downloads
3D Product Models
Data Sheets
USB Silicon CMOS Camera Datasheet (152 kB, PDF) BeamGage Datasheet (647.6 kB, PDF)
Drawings & CAD
CMOS Camera Drawing(29.4 kB, PDF)
