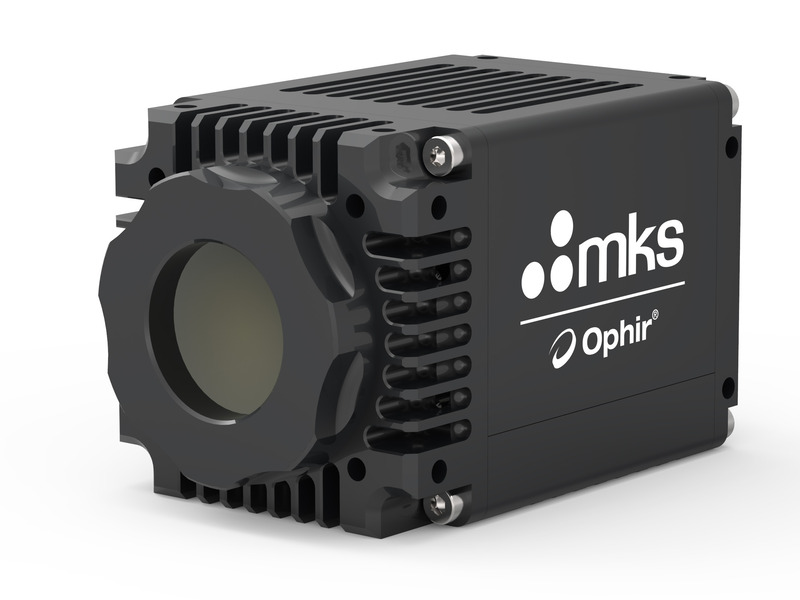

SP1203 Laser Beam Profiler, 640x512 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro, USA Only
BGP-GigE-SP1203
Model: SP90548
Product Series Overview
SP1203 GigE 640x512 CCD 900-1700 nm Laser Beam ProfilerSP1203 Laser Beam Profiler, 640x512 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro, USA Only
The BGP-GigE-SP1203 camera based laser beam profiler (P/N SP90548) accurately captures and analyzes wavelengths from 900 to 1700 nm. It features a high resolution VGA sensor, compact design, power over Ethernet, stabilized sensor cooling with no fan, and automatic NUC file correction. This InGaAs camera-based beam profiling system is ideal for eye-safe military, telecom, and medical laser applications. The included BeamGage Professional software has all of the functionality that BeamGage Standard includes. BeamGage Professional supports all of our beam profiling cameras, includes window partitioning to allow analysis of multiple beams on a single camera, and includes an automation interface written in .NET to push data to your custom applications.
Specifications
- Spectral Range900-1700 nm
- Beam Size150 µm - 7.4 mm
- Sensor TypeInGaAs
- Compatible Light SourcesCW, Pulsed
- Active Area9.6 x 7.6 mm
- 17.5 mm
- Elements640 x 512
- Effective Pixel Pitch15 μm
- Dynamic Range68 dB
- Full Resolution Frame Rate60 fps
- Saturation Intensity12.6 μW/cm2 @ 1064 nm
8.9 μW/cm2 @ 1550 nm - SoftwareBeamGage Professional
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
- CommunicationGigE
Resources & Downloads
3D Product Models
Data Sheets
GigE / USB InGaAs NIR Cameras Datasheet (380.1 kB, PDF) BeamGage Datasheet (647.6 kB, PDF)
Drawings & CAD
SP1201 SP1203 Drawing(372.7 kB, PDF)
