Laser Beam Profiler, 320x256 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro, USA Only
BGP-GigE-SP1201
Model: SP90547
Product Series Overview

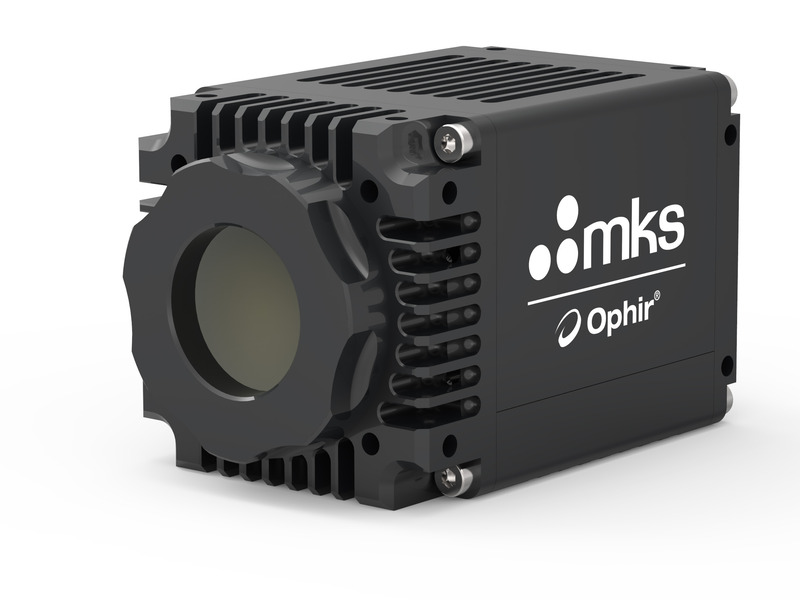

SP1201 GigE 320x256 CCD 900-1700 nm Laser Beam ProfilerLaser Beam Profiler, 320x256 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro, USA Only
The SP1201 camera accurately captures and analyzes wavelengths from 900nm - 1700nm. It features a QVGA sensor, compact design, power over Ethernet, stabilized sensor cooling with no fan, and automatic NUC file correction. This InGaAs camera-based beam profiling system is ideal for eye-safe military, telecom, and medical laser applications.
Specifications
- Spectral Range900-1700 nm
- Beam Size300 µm - 7.4 mm
- Sensor TypeInGaAs
- Compatible Light SourcesCW, Pulsed
- Active Area9.6 x 7.6 mm
- 17.5 mm
- Elements320 x 256
- Effective Pixel Pitch30 μm
- Dynamic Range59 dB
- Full Resolution Frame Rate60 fps
- Saturation Intensity0.4 μW/cm2 @ 1064 nm
0.2 μW/cm2 @ 1550 nm - SoftwareBeamGage Professional
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
- CommunicationGigE
Resources & Downloads
3D Product Models
Data Sheets
GigE / USB InGaAs NIR Cameras Datasheet (380.1 kB, PDF) BeamGage Datasheet (647.6 kB, PDF)
Drawings & CAD
SP1201 SP1203 Drawing(372.7 kB, PDF)
